Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02727.85.01CABLE 4COND 10AWG BLACK |
4,007 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.715" (18.16mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
E2012S.30.10CABLE 12CON 22AWG GRY SHLD 1000' |
4,130 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 12 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.225" (5.72mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0080" (0.203mm) | Poly-Vinyl Chloride (PVC) | - |
|
C2536A.41.10CABLE 2COND 16AWG GRAY SHLD |
3,399 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.307" (7.80mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 600 V | -20°C ~ 75°C | Communication, Control | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
C1302.41.01CABLE MIC 2COND 20AWG BLACK |
3,838 |
|
Datasheet | - | Spool | Active | Microphone | 2 | 20 AWG | 26/34 | Copper, Tinned | Rubber | 0.270" (6.86mm) | Braid | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 60°C | Audio-Video, Home | 0.0350" (0.889mm) | Rubber | - |
|
C0651A.41.10MULTI-PAIR 6COND 22AWG GRAY |
3,990 |
|
Datasheet | - | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.296" (7.52mm) | Foil, Braid | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0783A.41.10CABLE 6COND 20AWG GRAY SHLD |
3,979 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

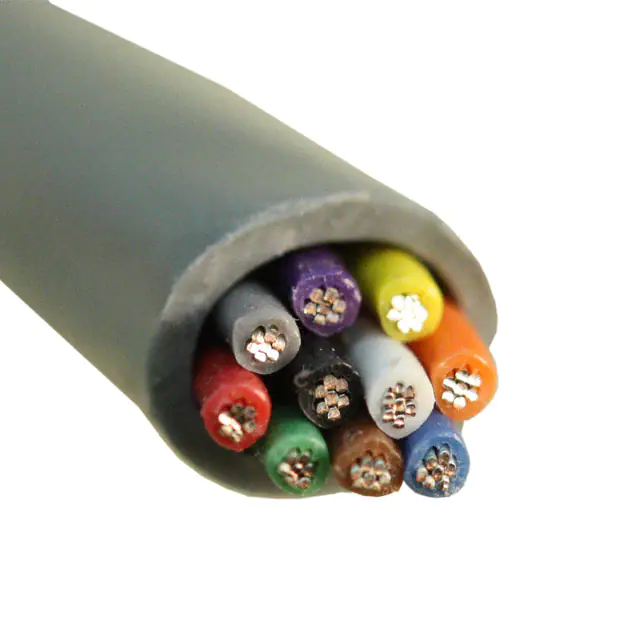

C4071A.41.10CABLE 10COND 22AWG GRAY |
1,778 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.268" (6.81mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0765A.41.10CABLE 10COND 22AWG GRAY SHLD |
3,059 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.269" (6.83mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0560A.41.10MULTI-PAIR 4COND 18AWG GRAY |
1,450 |
|
Datasheet | - | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 18 AWG | 16/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0787A.41.10CABLE 20COND 20AWG GRAY SHLD |
1,323 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 20 | 20 AWG | 7/28 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.435" (11.05mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
