Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2523A.38.10CABLE 4COND 22AWG GRAY SHLD |
500 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0300" (0.762mm) | Polyethylene (PE) | - |
|
|
09806.35.01CABLE 6COND 18AWG BLACK |
250 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 18 AWG | 16/30 | Copper, Bare | Super Vu-Tron® | 0.495" (12.57mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

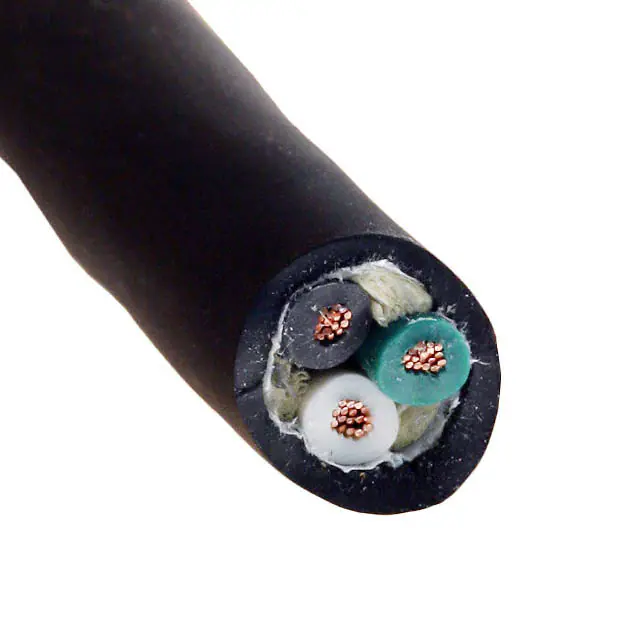

01380.38T.01CABLE 3COND 12AWG BLACK |
10,500 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.430" (10.92mm) | - | 500.0' (152.4m) | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
E3522S.41.07CABLE 2COND 14AWG BLUE |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.205" (5.21mm) | - | 1000.0' (304.8m) | Blue | ASTM B-3 | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
E3506S.41.03CABLE 6COND 18AWG RED |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 18 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.211" (5.36mm) | - | 1000.0' (304.8m) | Red | ASTM B-3 | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
16063.40.01CABLE 3COND 8AWG BLACK |
200 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 8 AWG | 133/29 | Copper, Annealed Bare | Carolprene | 0.840" (21.34mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0600" (1.524mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
C3068.41.86CABLE 2COND 16AWG NATURAL |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.187" (4.75mm) | Foil | 1000.0' (304.8m) | Natural | ASTM B-3 | Drain Wire, Rip Cord | 150 V | 0°C ~ 75°C | Communication, Control | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
16065.41.01CABLE 5COND 8AWG BLACK |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 8 AWG | 133/29 | Copper, Bare | Carolprene | 1.075" (27.31mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0600" (1.524mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
C4064A.41.10CABLE 5COND 22AWG GRAY 100' |
4,287 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 5 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.203" (5.16mm) | - | 100.0' (30.5m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C4063A.12.10CABLE 4COND 22AWG GRAY 100' |
3,928 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 100.0' (30.5m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
