Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M5670 SL005MULTI-PAIR 10COND 20AWG |
2,999 |
|
Datasheet | - | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.413" (10.49mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
862007CY SL005CABLE 7COND 20AWG SLATE SHLD |
1,335 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.313" (7.95mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2661 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
M1243 WH005CABLE 3COND 18AWG WHITE SHLD |
4,678 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 18 AWG | 19/30 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.197" (5.00mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
77254 SL005CABLE 4COND 28AWG SLATE SHLD |
2,386 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 4 | 28 AWG | 7/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.181" (4.60mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
5405 SL005CABLE 5COND 22AWG SLATE |
4,897 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 5 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.385" (9.78mm) | - | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
6359 SL005CABLE 15COND 24AWG SHLD |
4,328 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.353" (8.97mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - |
|
5923 SL005CABLE 6COND 28AWG SLATE |
1,949 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 6 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.174" (4.42mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

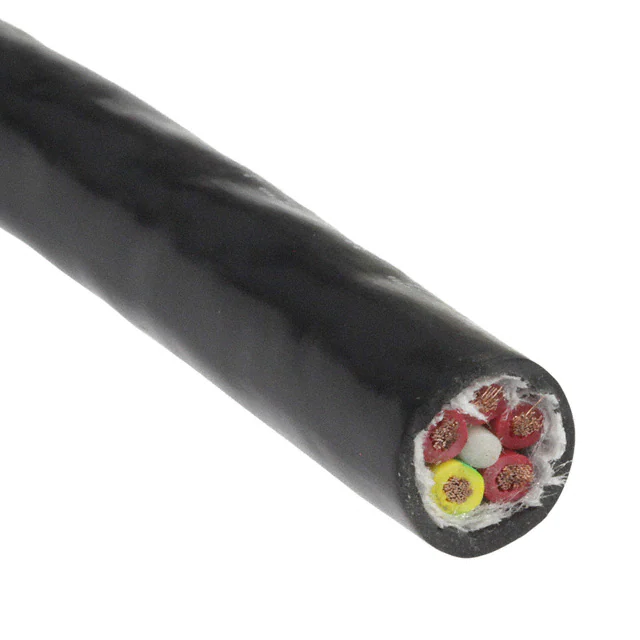

85805 BK005CABLE 5COND 18AWG BLACK |
3,763 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 18 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.355" (9.02mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
852210 BK005CABLE 10COND 22AWG BLACK |
3,548 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 10 | 22 AWG | 41/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.409" (10.39mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
6406 SL005MULTI-PAIR 14COND 24AWG |
4,840 |
|
Datasheet | - | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.373" (9.47mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
