Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
852205 BK005CABLE 5COND 22AWG BLACK |
1,430 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 22 AWG | 41/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.295" (7.49mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
M2482 SL005CABLE 25COND 22AWG SHLD |
4,061 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 25 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.390" (9.91mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
85004 BK005CABLE 4COND 18AWG BLACK |
3,016 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 18 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.297" (7.54mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5420/3 SL005CABLE 3CON 20AWG SLATE SHLD |
1,899 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.354" (8.99mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
852207 BK005CABLE 7COND 22AWG BLACK |
2,530 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 22 AWG | 41/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.344" (8.74mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

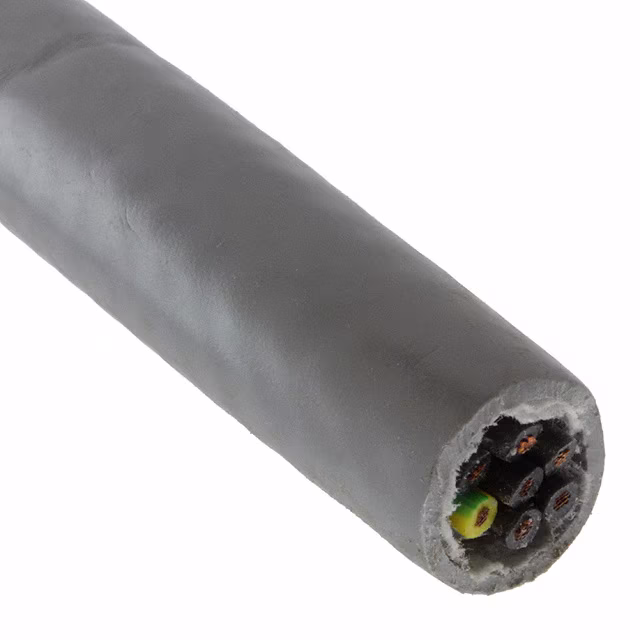

65007CY SL005CABLE 7COND 20AWG SLATE SHLD |
1,317 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.409" (10.39mm) | Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5383/1C SL005CABLE 3COND 18AWG SLATE SHLD |
1,995 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.242" (6.15mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21894 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
77248 SL005CABLE 3COND 26AWG SLATE SHLD |
1,023 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.180" (4.57mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
77014 SL005CABLE 4COND 20AWG SLATE |
2,132 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.209" (5.31mm) | - | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
24RC3S06 NA005CABLE 3COND 24AWG NAT SHLD |
1,553 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.130" (3.30mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 200°C | - | 0.0098" (0.250mm) | Polytetrafluoroethylene (PTFE) | - |
