Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5199/10C SL005CABLE 10COND 22AWG SHLD 100' |
1,932 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

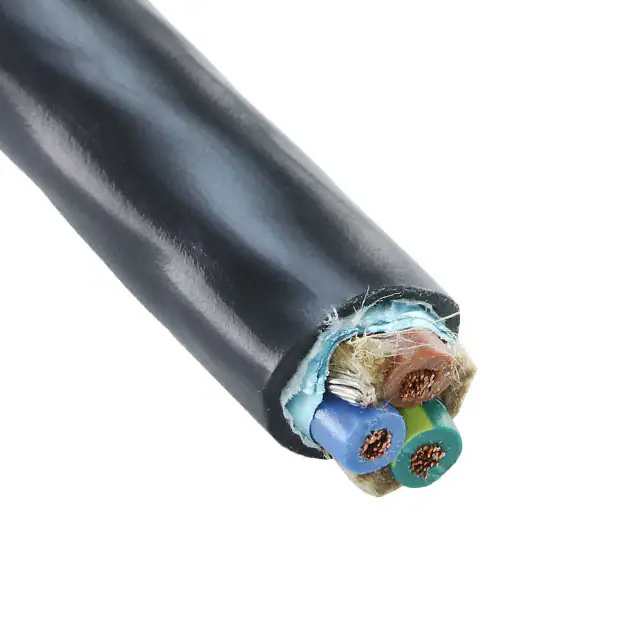

1942/3F BK003CABLE 3COND 16AWG BLK SHLD 250' |
144 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | Foil | 250.0' (76.2m) | Black | - | Drain Wire | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1943/3F BK003CABLE 3COND 14AWG BLK SHLD 250' |
2,602 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.372" (9.45mm) | Foil | 250.0' (76.2m) | Black | - | Drain Wire | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5120/15C SL005CABLE 15COND 24AWG SHLD 100' |
2,934 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.299" (7.60mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5299C SL005MULTI-PAIR 18COND 20AWG 100' |
3,318 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.515" (13.08mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1896L SL001CABLE 3COND 20AWG SLATE |
2,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.189" (4.80mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
2464C SL021CABLE 4COND 22AWG SHLD |
3,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 (1 Pair + 2) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
M39029 SL002CABLE 8CON 24AWG SLATE SHLD 500' |
500 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.214" (5.44mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
652602 SL005CABLE 2COND 26AWG SLATE |
1,000 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.202" (5.13mm) | - | 100.0' (30.5m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13307 SL005CABLE 7COND 22AWG SLATE |
700 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | - | 100.0' (30.5m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
