Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

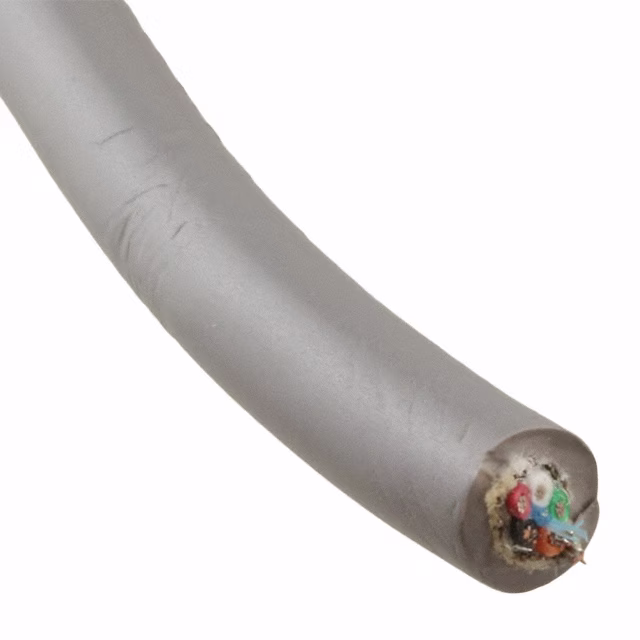

86105CY SL005CABLE 5CON 26AWG SLATE SHLD 100' |
1,882 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.211" (5.36mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
M1612 SL005CABLE 12COND 28AWG SHLD 100' |
3,285 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 12 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -55°C ~ 105°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
25096 BK005CABLE 6COND 24AWG BLK SHLD 100' |
3,212 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.205" (5.21mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
2219C SL005MULTI-PAIR 18COND 22AWG 100' |
2,234 |
|
Datasheet | - | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.372" (9.45mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 150 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5484C SL005MULTI-PAIR 8CON 22AWG SLATE 100' |
156 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.271" (6.88mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13404 SL001CABLE 4COND 20AWG SLATE 1000' |
2,813 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | - | 1000.0' (304.8m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
2401C SL001CABLE 2COND 22AWG SHLD 1000' |
3,592 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.168" (4.27mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|
45484 BK005MULTI-PAIR 8COND 22AWG BLK 100' |
3,310 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.344" (8.74mm) | Foil | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
79257 SL005CABLE 3CON 26AWG SLATE SHLD 100' |
1,907 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.188" (4.78mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
80060 SL005CABLE 3COND 12AWG SLATE 100' |
2,654 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 3 | 12 AWG | 168/34 | Copper, Tinned | Polyurethane (PU) | 0.357" (9.06mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
