Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M33304 SL001CABLE 4COND 22AWG SLATE 1000' |
3,991 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.188" (4.78mm) | - | 1000.0' (304.8m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13405 SL002CABLE 5COND 20AWG SLATE 500' |
4,074 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
22RC2S06 NA005CABLE 2COND 22AWG NAT SHLD 100' |
3,398 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/36 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.136" (3.45mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 200°C | - | 0.0098" (0.250mm) | Polytetrafluoroethylene (PTFE) | - |
|
65604CY SL005CABLE 4CON 16AWG SLATE SHLD 100' |
3,769 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.416" (10.57mm) | Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5902C SL002MULTI-PAIR 4CON 22AWG SLATE 500' |
1,753 |
|
Datasheet | - | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

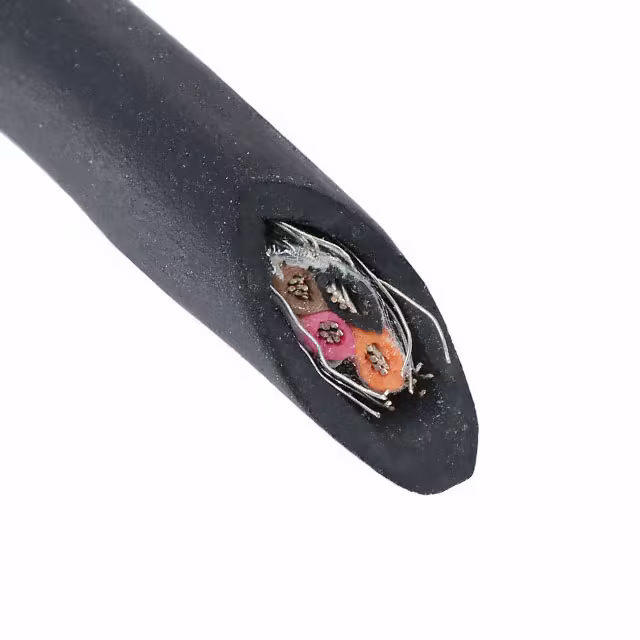

25104 BK005CABLE 4COND 22AWG BLK SHLD 100' |
2,357 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.217" (5.51mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
901609 SL005CABLE 9COND 16AWG SLATE 100' |
1,945 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 16 AWG | 26/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.487" (12.37mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
901405CY SL005CABLE 5CON 14AWG SLATE SHLD 100' |
1,136 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 14 AWG | 41/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.452" (11.48mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
77124 SL005CABLE 2CON 18AWG SLATE SHLD 100' |
1,363 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.206" (5.23mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

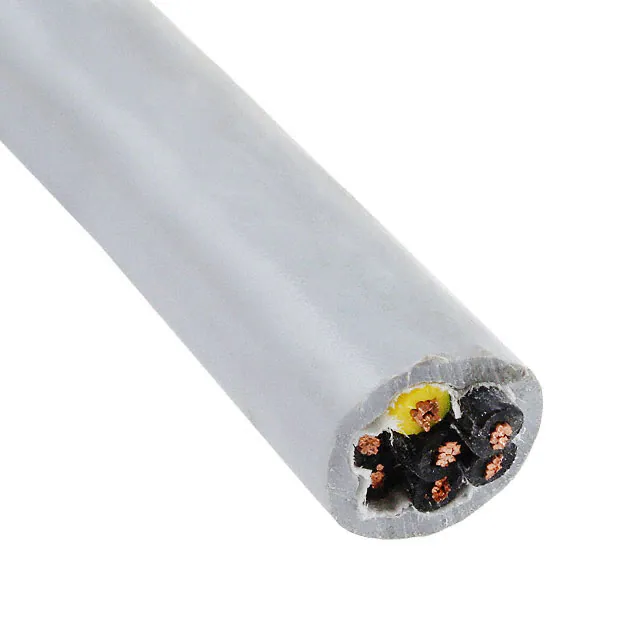

80036 SL005CABLE 7COND 18AWG SLATE 100' |
2,666 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/34 | Copper, Tinned | Polyurethane (PU) | 0.258" (6.55mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
