Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77116 SL005CABLE 3CON 20AWG SLATE SHLD 100' |
2,560 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.197" (5.00mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
3201 SL005CABLE 2CON 26AWG SLATE SHLD 100' |
1,135 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.143" (3.63mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0142" (0.360mm) | Poly-Vinyl Chloride (PVC) | - |
|
6451 SL005MULTI-PAIR 4CON 15AWG/18AWG 100' |
1,239 |
|
Datasheet | DeviceNet™ | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 15 AWG, 18 AWG | 19/0.0135"; 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.480" (12.19mm) | Foil, Braid | 100.0' (30.5m) | Slate | - | Oil Resistant | 300 V | -20°C ~ 75°C | Communication, Control | 0.0600" (1.524mm) | Poly-Vinyl Chloride (PVC) | - |
|

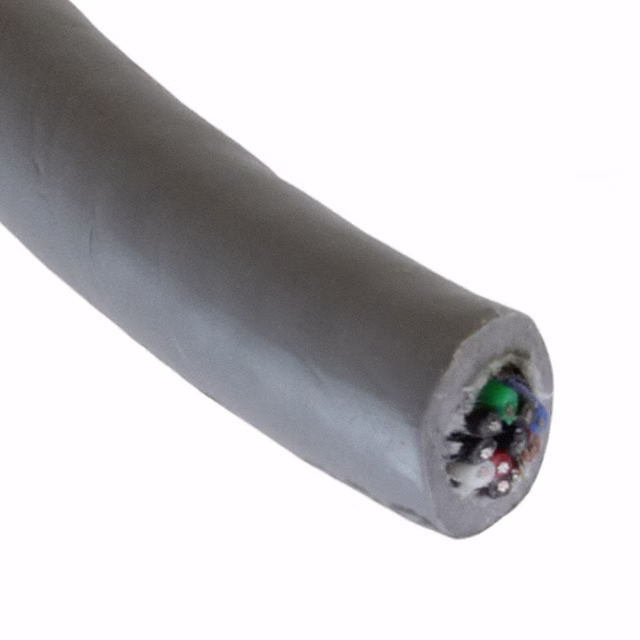

86405CY SL005MULTI-PAIR 10COND 28AWG 100' |
1,517 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.274" (6.96mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
6367 SL005MULTI-PAIR 14COND 24AWG 100' |
2,870 |
|
Datasheet | - | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.308" (7.82mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

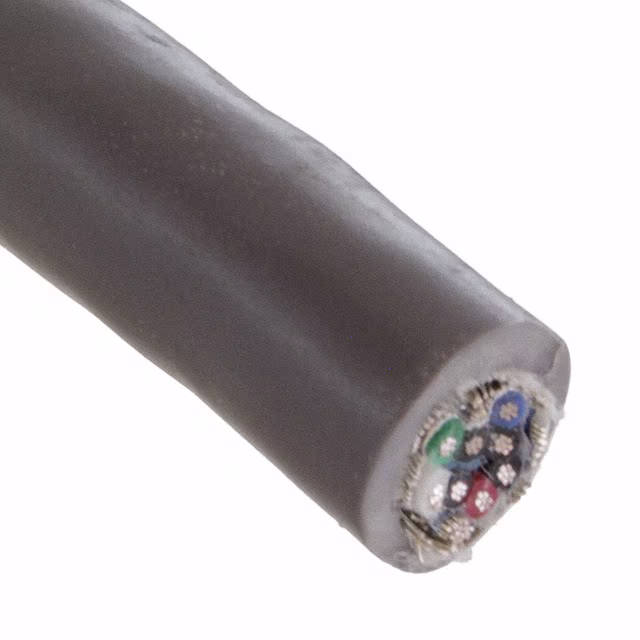

86504CY SL005MULTI-PAIR 8CON 26AWG SLATE 100' |
3,599 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|

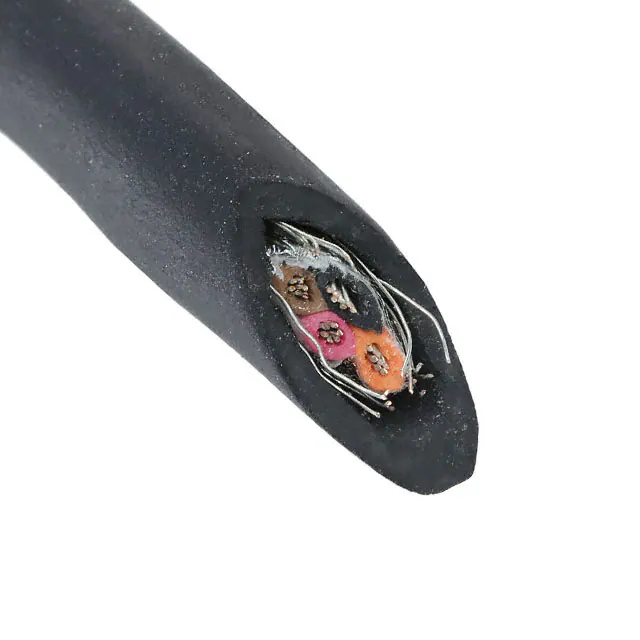

25114 BK005CABLE 4COND 24AWG BLK SHLD 100' |
2,563 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.203" (5.16mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5480C SL005MULTI-PAIR 20COND 24AWG 100' |
1,923 |
|
Datasheet | - | Spool | Active | Multi-Pair | 20 (10 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.373" (9.47mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
5480L SL005MULTI-PAIR 20COND 24AWG 100' |
4,264 |
|
Datasheet | - | Spool | Active | Multi-Pair | 20 (10 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.378" (9.60mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
M1128 SL005CABLE 8CON 20AWG SLATE SHLD 100' |
3,146 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.328" (8.33mm) | Braid | 100.0' (30.5m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
