Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3232 SL005CABLE 3CON 20AWG SLATE SHLD 100' |
3,350 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0190" (0.483mm) | Poly-Vinyl Chloride (PVC) | - |
|
901203CY SL005CABLE 3CON 12AWG SLATE SHLD 100' |
2,555 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.428" (10.87mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
M33800 BK002CABLE 2COND 18AWG BLK SHLD 500' |
3,391 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.277" (7.04mm) | Foil | 500.0' (152.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
M33502 SL001CABLE 2COND 18AWG SLATE 1000' |
3,979 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.208" (5.28mm) | - | 1000.0' (304.8m) | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
275002002 NA005CABLE 2COND 20AWG NAT SHLD 100' |
3,228 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.162" (4.11mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 150°C | - | 0.0098" (0.250mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
5478L SL005MULTI-PAIR 16COND 24AWG 100' |
2,746 |
|
Datasheet | - | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.319" (8.10mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
862004CY SL005CABLE 4CON 20AWG SLATE SHLD 100' |
4,852 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2661 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
78028 SL005CABLE 8COND 24AWG SLATE 100' |
1,208 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Conductor | 8 | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.164" (4.17mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
M13304 SL001CABLE 4COND 22AWG SLATE 1000' |
1,467 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | - | 1000.0' (304.8m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | Audio-Video, Home | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

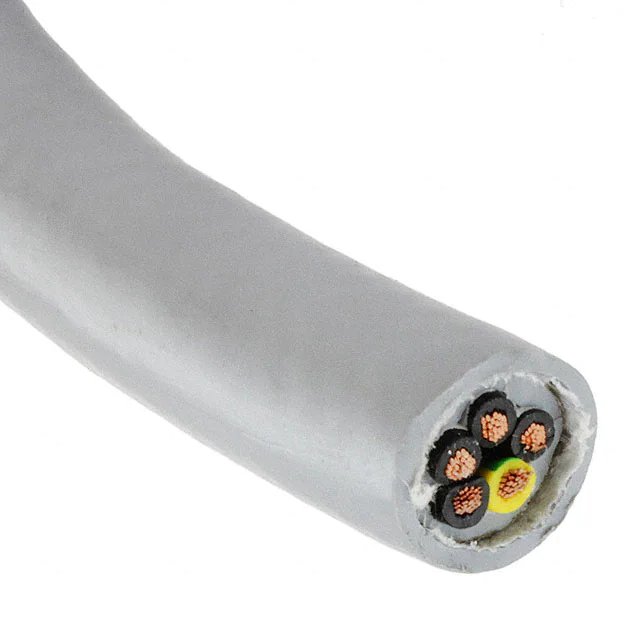

80110 SL005CABLE 5CON 24AWG SLATE SHLD 100' |
1,186 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 5 | 24 AWG | 19/36 | Copper, Tinned | Polyurethane (PU) | 0.218" (5.54mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
