Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45120/25 BK005CABLE 25COND 24AWG BLK SHLD 100' |
2,815 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 25 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.452" (11.48mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45440/5 BK005CABLE 5COND 16AWG BLK SHLD 100' |
2,799 |
|
Datasheet | Xtra-Guard® 4 | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.452" (11.48mm) | Foil | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45279/11 BK005MULTI-PAIR 22COND 24AWG BLK 100' |
4,552 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.483" (12.27mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45199/20 BK005CABLE 20COND 22AWG BLK SHLD 100' |
1,363 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.445" (11.30mm) | Foil | 100.0' (30.5m) | Black | - | Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|

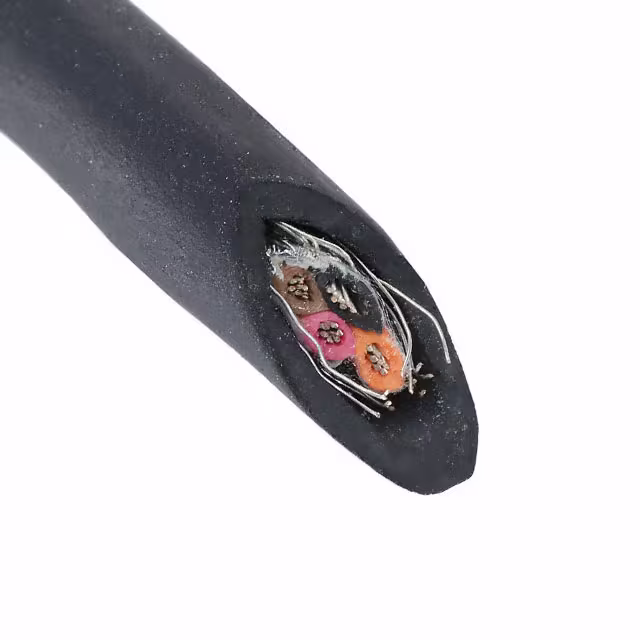

45534 BK005CABLE 4COND 16AWG BLK SHLD 100' |
4,160 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.440" (11.18mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45110/15 BK005CABLE 15COND 22AWG BLK SHLD 100' |
3,710 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.428" (10.87mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45296 BK005MULTI-PAIR 12COND 20AWG BLK 100' |
1,073 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.489" (12.42mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45134 BK005MULTI-PAIR 8COND 18AWG BLK 100' |
1,235 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.456" (11.58mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45450/3 BK005CABLE 3COND 14AWG BLK SHLD 100' |
1,956 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.416" (10.57mm) | Foil | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45525 BK005CABLE 5COND 18AWG BLK SHLD 100' |
1,074 |
|
Datasheet | Xtra-Guard® 4 | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.444" (11.28mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
