Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25430/7 BK005CABLE 7COND 18AWG BLK SHLD 100' |
2,105 |
|
Datasheet | Xtra-Guard® 2 | Spool | Discontinued at Digi-Key | Multi-Conductor | 7 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.470" (11.94mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25430/9 BK005CABLE 9COND 18AWG BLK SHLD 100' |
4,634 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 9 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.539" (13.69mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25440/15 BK005CABLE 15COND 16AWG BLK SHLD 100' |
3,854 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 15 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.702" (17.83mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

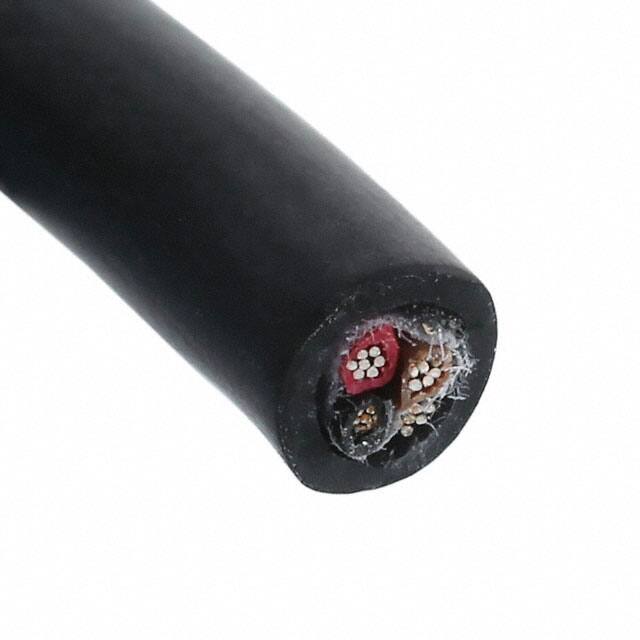

25450/3 BK005CABLE 3COND 14AWG BLK SHLD 100' |
4,371 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Tinned | Polyurethane (PU) | 0.432" (10.97mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
25450/4 BK005CABLE 4COND 14AWG BLK SHLD 100' |
1,294 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Polyurethane (PU) | 0.468" (11.89mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25450/5 BK005CABLE 5COND 14AWG BLK SHLD 100' |
4,355 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 5 | 14 AWG | 41/30 | Copper, Tinned | Polyurethane (PU) | 0.509" (12.93mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25459/12 BK005MULTI-PAIR 24COND 20AWG BLK 100' |
4,895 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.549" (13.94mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25499/27 BK005MULTI-PAIR 54COND 24AWG BLK 100' |
2,411 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Pair | 54 (27 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.516" (13.11mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25539/19 BK005CABLE 19COND 16AWG BLK SHLD 100' |
4,369 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 19 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.820" (20.83mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0830" (2.108mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25549/12 BK005CABLE 12COND 14AWG BLK SHLD 100' |
1,615 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 12 | 14 AWG | 41/30 | Copper, Tinned | Polyurethane (PU) | 0.777" (19.74mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0830" (2.108mm) | Poly-Vinyl Chloride (PVC) | - |
