Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

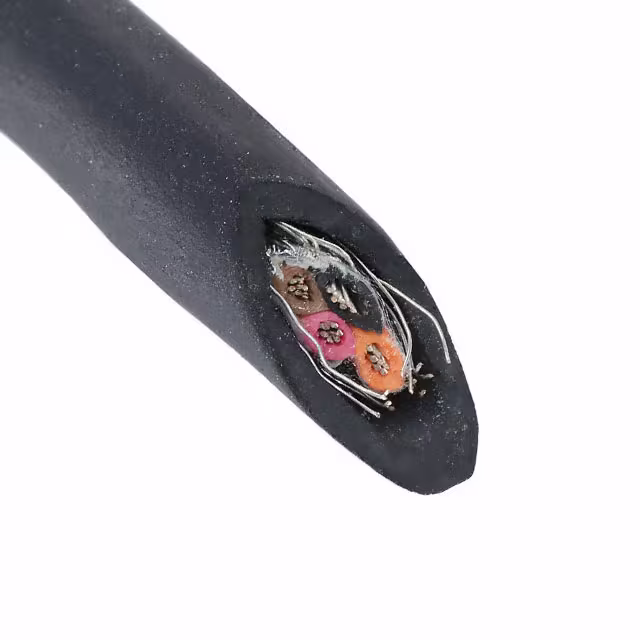

25544 BK005CABLE 4COND 14AWG BLK SHLD 100' |
3,337 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Polyurethane (PU) | 0.492" (12.50mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
25545 BK005CABLE 5COND 14AWG BLK SHLD 100' |
4,049 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 5 | 14 AWG | 41/30 | Copper, Tinned | Polyurethane (PU) | 0.533" (13.54mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20952 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25020/20 BK005CABLE 20COND 24AWG BLACK 100' |
1,234 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 20 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.300" (7.62mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25060/20 BK005CABLE 20COND 20AWG BLACK 100' |
1,024 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 20 | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.437" (11.10mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25060/25 BK005CABLE 25COND 20AWG BLACK 100' |
4,420 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 25 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.488" (12.40mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25060/50 BK005CABLE 50COND 20AWG BLACK 100' |
2,028 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 50 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.684" (17.37mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25062/1 BK005CABLE 2COND 18AWG BLACK 100' |
3,879 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.226" (5.74mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25063/1 BK005CABLE 3COND 18AWG BLACK 100' |
4,314 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.238" (6.05mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25072/1 BK005CABLE 2COND 16AWG BLACK 100' |
4,934 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.250" (6.35mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25080/15 BK005CABLE 15COND 16AWG BLACK 100' |
2,727 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 15 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.488" (12.40mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
