Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
57636 SL001MULTI-PAIR 12COND 20AWG |
1,433 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.291" (7.39mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - |
|
5547 SL005CABLE 7CON 14AWG SLATE SHLD 100' |
4,155 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.575" (14.61mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 21896 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
45371 BK001CABLE 2COND 18AWG BLK SHLD 1000' |
3,253 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.256" (6.50mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|

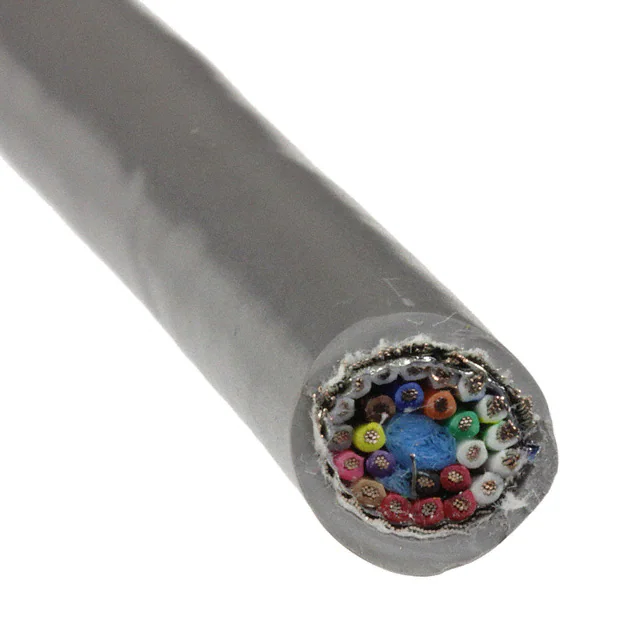

86225CY SL001CABLE 25COND 24AWG SHLD 1000' |
2,718 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.396" (10.06mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
45382 BK001CABLE 2COND 18AWG BLK SHLD 1000' |
2,831 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.256" (6.50mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45113 BK001CABLE 3COND 24AWG BLK SHLD 1000' |
1,001 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.237" (6.02mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
|
5678 SL001CABLE 7COND 26AWG SHLD |
2,276 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.190" (4.83mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6445 SL001MULTI-PAIR 12COND 18AWG 1000' |
2,574 |
|
Datasheet | - | Spool | Obsolete | Multi-Pair | 12 (6 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.557" (14.14mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|

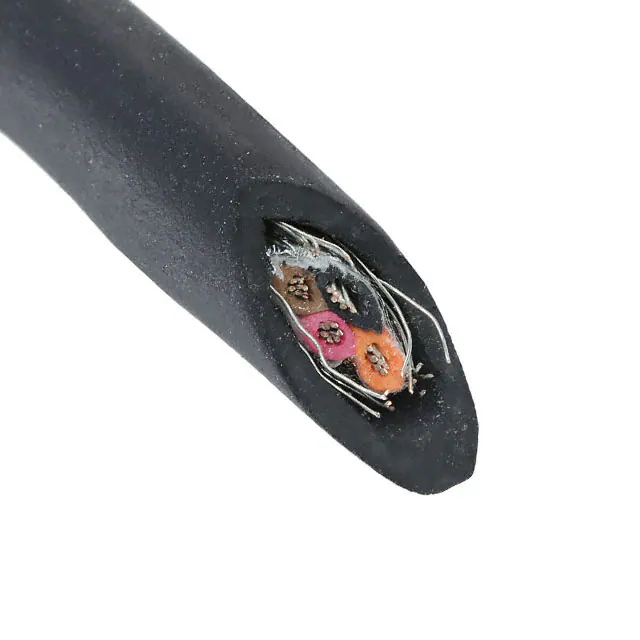

45104 BK001CABLE 4COND 22AWG BLK SHLD 1000' |
3,514 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.272" (6.91mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
M3485 SL002MULTI-PAIR 50COND 24AWG 500' |
1,041 |
|
Datasheet | - | Spool | Obsolete | Multi-Pair | 50 (25 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.832" (21.13mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2493 | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | - | 0.0650" (1.651mm) | Polypropylene (PP) | - |
