Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39036 SL001CABLE 40COND 24AWG SHLD 1000' |
3,757 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 40 | 24 AWG | 7/32 | - | Poly-Vinyl Chloride (PVC) | 0.409" (10.39mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3988 SL001MULTI-PAIR 36COND 24AWG 1000' |
1,191 |
|
Datasheet | - | Spool | Obsolete | Multi-Pair | 36 (18 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.560" (14.22mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0470" (1.194mm) | Polyethylene (PE) | - |
|
M1146 SL001CABLE 6COND 18AWG SHLD 1000' |
4,303 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC), Plenum | 0.333" (8.46mm) | Braid | 1000.0' (304.8m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
M3860 BK002CABLE 30COND 14AWG BLACK 500' |
1,030 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 30 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.907" (23.04mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0830" (2.108mm) | Poly-Vinyl Chloride (PVC) | - |
|

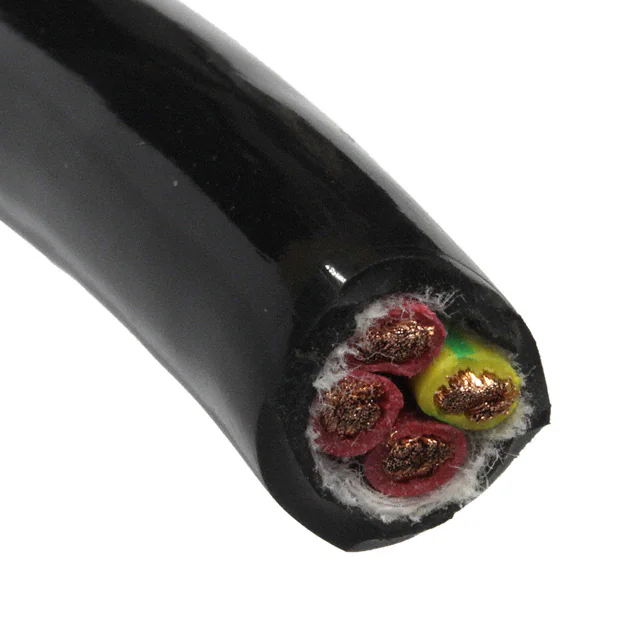

85004 BK001CABLE 4COND 18AWG BLACK |
3,240 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 18 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.297" (7.54mm) | - | 1000.0' (304.8m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6438 SL001MULTI-PAIR 18COND 22AWG 1000' |
3,832 |
|
Datasheet | - | Spool | Obsolete | Multi-Pair | 18 (9 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.484" (12.29mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M4673 SL002CABLE 30COND 20AWG SHLD 500' |
4,664 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 30 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.520" (13.21mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M1126 SL001CABLE 6COND 20AWG SHLD 1000' |
2,825 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC), Plenum | 0.306" (7.77mm) | Braid | 1000.0' (304.8m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
6440 SL002MULTI-PAIR 38COND 22AWG 500' |
2,197 |
|
Datasheet | - | Spool | Obsolete | Multi-Pair | 38 (19 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.646" (16.41mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
1937/4 BK003CABLE 4COND 12AWG BLACK 250' |
4,584 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Polyethylene (PE) | 0.674" (17.12mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.1000" (2.540mm) | Rubber | - |
