Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45100/20 SL199CABLE 20COND 24AWG SHLD 1000' |
1,144 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 20 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.387" (9.83mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45133 BK199MULTI-PAIR 6COND 18AWG BLK 1000' |
4,225 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.422" (10.71mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45133 SL199MULTI-PAIR 6COND 18AWG 1000' |
4,696 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.422" (10.71mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
5289C SL002MULTI-PAIR 18COND 20AWG |
1,803 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.487" (12.37mm) | - | 500.0' (152.4m) | Slate | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
77215 SL005CABLE 4COND 18AWG SLATE SHLD |
3,228 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.258" (6.55mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

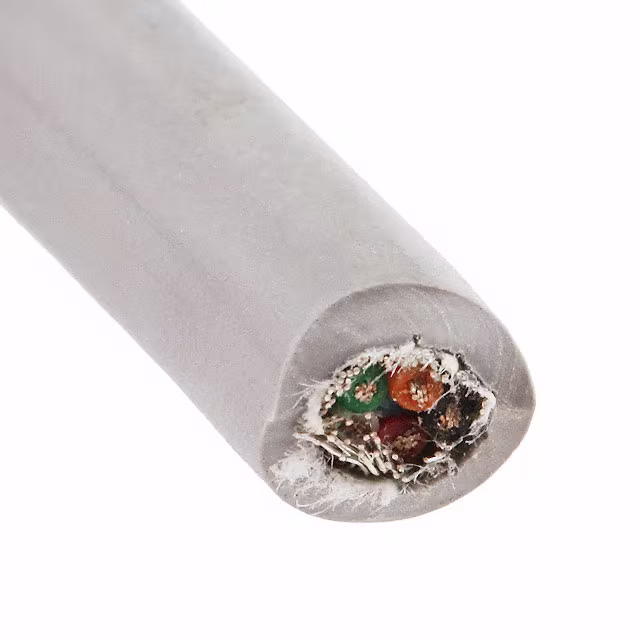

79204 SL005CABLE 5COND 20AWG SLATE SHLD |
4,111 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 5 | 20 AWG | 10/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.256" (6.50mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
5534 SL002CABLE 4COND 16AWG SLATE SHLD |
3,479 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.456" (11.58mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2501 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5533 SL002CABLE 3COND 16AWG SLATE SHLD |
4,383 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.423" (10.74mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2501 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
5160/25C SL001CABLE 25COND 20AWG SHLD |
2,380 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.516" (13.11mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6042C SL005MULTI-PAIR 24COND 20AWG |
4,770 |
|
Datasheet | - | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.635" (16.13mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2493 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0630" (1.600mm) | Polypropylene (PP) | - |
