Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55493 YL199MULT-PAIR 6COND 24AWG 1000=1000' |
2,973 |
|
Datasheet | Xtra-Guard® 5 | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.222" (5.64mm) | Foil | - | Yellow | - | - | 300 V | -80°C ~ 200°C | - | 0.0270" (0.686mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
80067 SL005CABLE 5COND 10AWG SLATE |
2,055 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 5 | 10 AWG | 259/34 | Copper, Tinned | Polyurethane (PU) | 0.556" (14.12mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0530" (1.346mm) | Polyphenylene Ether (PPE) | - |
|
|
M9740360 BK199MULTI-PAIR 72COND 20AWG BLK SHLD |
4,355 |
|
Datasheet | - | Bulk | Active | Multi-Pair | 72 (36 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 1.050" (26.67mm) | Foil | - | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0730" (1.854mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
77024 SL199CBL 7COND 18AWG SLATE 100=100' |
2,127 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 7 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.271" (6.88mm) | - | - | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

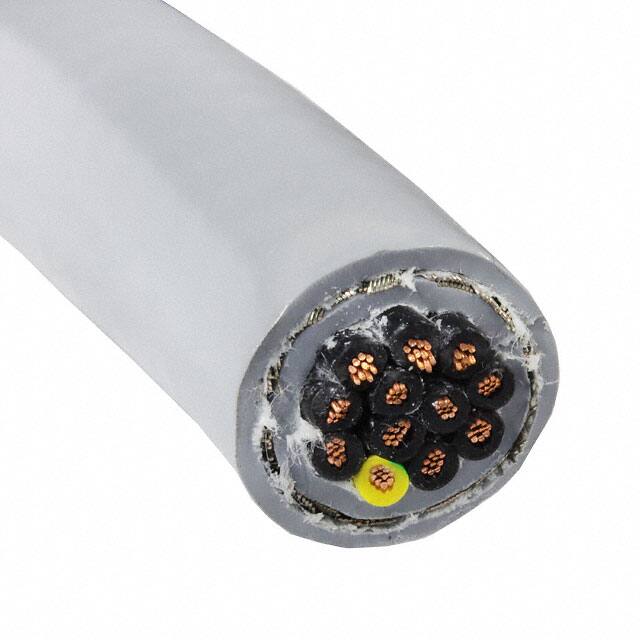

80155 SL005CABLE 12COND 14AWG SHLD |
4,657 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 12 | 14 AWG | 105/34 | Copper, Tinned | Polyurethane (PU) | 0.501" (12.73mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
|
25176 BK199CABLE 6COND 16AWG BLK SHLD 1000' |
3,908 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.371" (9.42mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25176 SL199CABLE 6COND 16AWG SHLD 1000' |
4,567 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.371" (9.42mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
45070 BK199CABLE 10COND 18AWG BLACK 1000' |
2,114 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 10 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.430" (10.92mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45070 SL199CABLE 10COND 18AWG SLATE 1000' |
3,867 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 10 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.430" (10.92mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45070 YL199CABLE 10COND 18AWG YELLOW 1000' |
3,995 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 10 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.430" (10.92mm) | - | 1000.0' (304.8m) | Yellow | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
