Current/Voltage Transducer Monitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output | Isolation | Response Time | Accuracy | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENTUBE SE (50V 10V)TRANSDUCER VOLTAGE DIVIDER |
3,366 |
|
Datasheet | Entube SE | Box | Active | Voltage Transducer | ±50V | ±10V | - | - | ±0.2% | - | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
2813460TRANSDUCER CURRENT 20-30VDC |
1,619 |
|
Datasheet | MCR | Bulk | Active | Current Transducer | 0 ~ 200A | 0 ~ 10VDC | 5000VAC (Test) | 340ms | - | 20 ~ 30VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C | CE, cULus |
|
2906243TRANSDUCER VOLTAGE 24VDC |
4,997 |
|
Datasheet | MACX | Bulk | Active | Voltage Transducer | ±660VDC | ±10V | 5300VAC (Test) | 16ms | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 60°C | CE, cULus |
|
ENTUBE DE-HB (500V 10V DIFFSC)TRANSDUCER VOLTAGE 9-28VDC |
2,317 |
|
Datasheet | Entube DE-HB | Box | Active | Voltage Transducer | ±500V | ±10V | - | 20ns | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ENTUBE DE-HB (1000V 10V DIFFSC)TRANSDUCER VOLTAGE 9-28VDC |
3,127 |
|
Datasheet | Entube DE-HB | Box | Active | Voltage Transducer | ±1000V | ±10V | - | 20ns | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
ISOBLOCK V-4C (1500V 10V)TRANSDUCER VOLTAGE 9-28VDC |
3,647 |
|
Datasheet | IsoBlock V | Box | Active | Voltage Transducer | ±1500V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-4C (50V 10V)TRANSDUCER VOLTAGE 9-28VDC |
3,854 |
|
Datasheet | IsoBlock V | Box | Active | Voltage Transducer | ±50V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
286-662CURRENT FLOW MONITORING MODULE D |
3,416 |
|
Datasheet | - | Box | Active | Current Transducer | 24 ~ 210mV | 0.4 ~ 3.5A | - | 0.5ms | - | 12 ~ 28VDC | Socketable | Plug In | -25°C ~ 40°C | - |
|
2810638MACX MCR-SL-CAC-12-I-UP |
3,327 |
|
Datasheet | MACX MCR | Bulk | Active | Current Transducer | 0 ~ 12A | 0 ~ 20mA | 4000VAC (Test) | 200ms | - | 19.2 ~ 253VAC/DC | DIN Rail | Screw Terminal | -20°C ~ 65°C | ATEX, EAC |
|

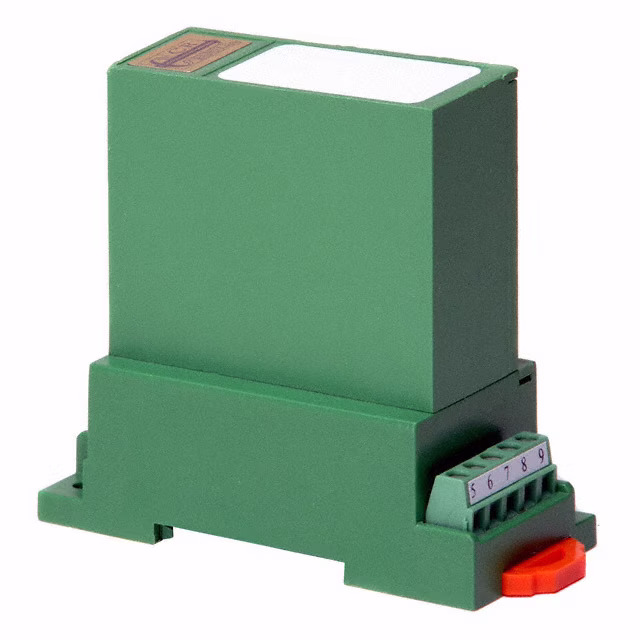

CR4580-150TRANSDUCER VOLTAGE 24VDC |
4,076 |
|
Datasheet | CR4500 | Box | Active | True RMS AC Voltage Transducer | 0 ~ 150VAC | 4 ~ 20mA | 2500VDC | 250ms | 0.5% | 24VDC | DIN Rail | Screw Terminal | 0°C ~ 60°C | CE, cURus |
|
ISOBLOCK V-1C (1000V 10V0.1%)TRANSDUCER VOLTAGE 9-28VDC |
1,128 |
|
Datasheet | IsoBlock V | Box | Active | Voltage Transducer | ±1000V | ±10V | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ATM130104RSHEECURRENT SENSING , CONTROL AND MO |
4,439 |
|
Datasheet | - | Tray | Active | - | 0 ~ 40A | - | - | - | 1% | - | - | - | -40°C ~ 85°C | - |
|
|
T201Loop Power AC Current Transducer |
2,353 |
|
Datasheet | T201 | Bulk | Active | AC Current Transducer | 5 ~ 40VAC (Configurable) | 4 ~ 20mA | 3000VAC | 100ms | ±0.2% | 5 ~ 28VDC | DIN Rail | Spring Terminal | -20°C ~ 65°C | CE, UL |
|
|
DN-831I-100V-200A1 CH 100V AC/DC& 200A ATTENUATOR |
1,395 |
|
Datasheet | DN-831I-100V | Box | Active | Current Transducer | ±200A | ±10V | 2500V (Working) | - | 1% | 10 ~ 30VDC | DIN Rail | - | -25°C ~ 75°C | CE, FCC |
|
|
AIMDC-10V-1000VTRANSDUCER 0-100V:0-10VDC |
2,847 |
|
Datasheet | AIMDC | Bulk | Active | DC Voltage Transducer | 0 ~ 1000VDC | 0 ~ 10VDC | - | 10ms | 0.005% | 15 ~ 36VDC | DIN Rail, Wall Mount | Screw Terminal | -35°C ~ 100°C | - |
|
|
CR4520-600TRANSDUCER VOLTAGE 24VDC |
1,401 |
|
Datasheet | CR4500 | Bulk | Active | True RMS AC Voltage Transducer | 0 ~ 600VAC | 4 ~ 20mA | 2500VDC | 250ms | 0.5% | 24VDC | DIN Rail | Screw Terminal | 0°C ~ 60°C | CE, cURus |
|
|
DC1-PRO-1000V:5VTRANSDUCER 0-1000V:0-5VDC 0.5% |
2,395 |
|
Datasheet | DC1-PRO | Case | Active | DC Voltage Transducer | 0 ~ 1000VDC | 0 ~ 5VDC | 3000V, 1 minute | 10ms | 0.5% | 15 ~ 36VDC | DIN Rail, Wall Mount | Screw Terminal | -35°C ~ 100°C | - |
|
|
ISOBLOCK V-1C (5V 5V)VOLTAGE SEN W/GALVANIC ISOLATION |
3,589 |
|
Datasheet | IsoBlock V | Box | Active | Voltage Transducer | ±5V | ±5V | 1500V (Working) | 3µs | ±0.2% | 12 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | CE |
|
2814731TRANSDUCER CURRENT 20-30VDC |
1,914 |
|
Datasheet | MCR | Bulk | Obsolete | Current Transducer | 0 ~ 11A | ±10VDC, 0 ~ 20mA | 300VAC (Working), 4000VAC (Test) | 40ms, 330ms | - | 20 ~ 30VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C | CE, cULus |
|

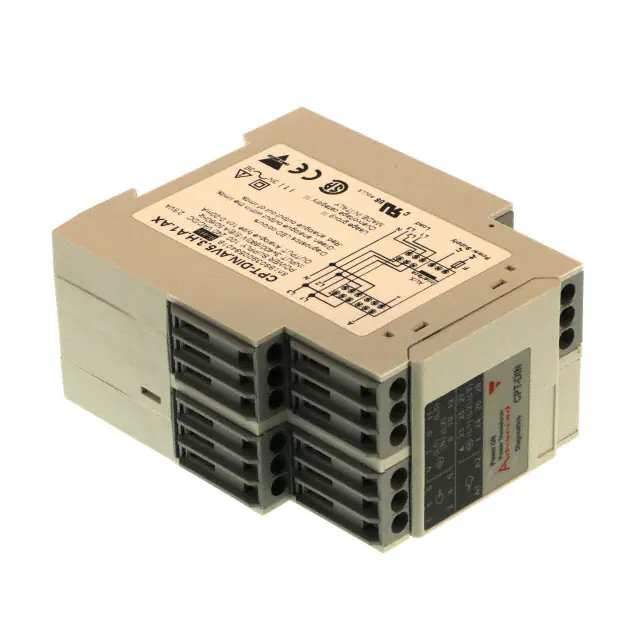

CPTDINAV53HA1AXTRANSDUCER VOLTAGE 90-260VAC/DC |
4,146 |
|
Datasheet | CPT-DIN | Bulk | Active | True RMS AC Voltage Transducer | 400 ~ 690VAC | 0 ~ 20mA | 4000VAC (Test) | 400ms | ±0.5% | 90 ~ 260VAC/DC | DIN Rail | Screw Terminal | 0°C ~ 50°C | CE, CSA, cURus |
