Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22SNSP.12522SNSP.125 MAGNET WIRE, ENAMELED |
4,041 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 63.0' (19m) | MW 80-C | 0.13 lbs (56.7 g) |
|
14HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
4,177 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 9.0' (2.7m) | MW 80-C | 0.13 lbs (56.7 g) |
|
38SNSP.12538SNSP.125 MAGNET WIRE, ENAMELED |
2,011 |
|
Datasheet | - | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2494.0' (760m) | MW 79-C | 0.13 lbs (56.7 g) |
|
16HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
1,979 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 15.0' (4.6m) | MW 80-C | 0.13 lbs (56.7 g) |
|

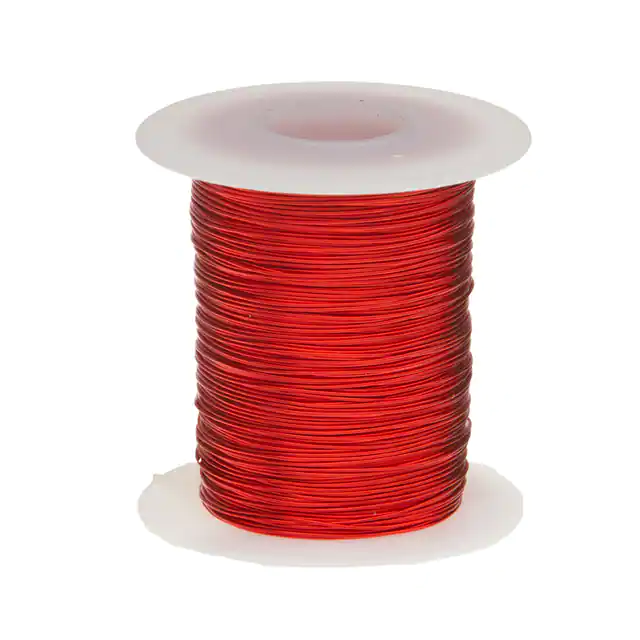

26SNSP.2526SNSP.25 26 AWG MAGNET WIRE, EN |
4,474 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 320.0' (98m) | MW 80-C | 0.25 lbs (113.4 g) |
|
25HNSP.125#25 HVY MAG WIRE, 155C RED 2OZ |
1,867 |
|
Datasheet | - | Box | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.020" (0.51mm) | 124.0' (37.8m) | MW 80-C | 0.13 lbs (56.7 g) |
|

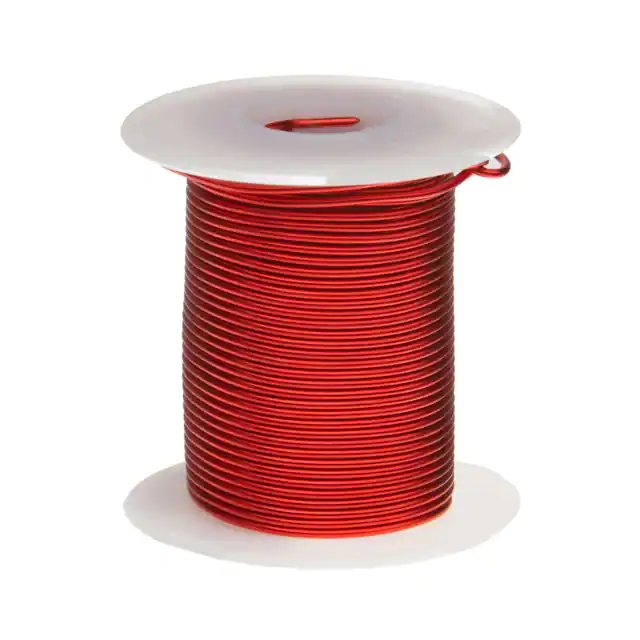

18HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
3,930 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 24.0' (7.3m) | MW 80-C | 0.13 lbs (56.7 g) |
|

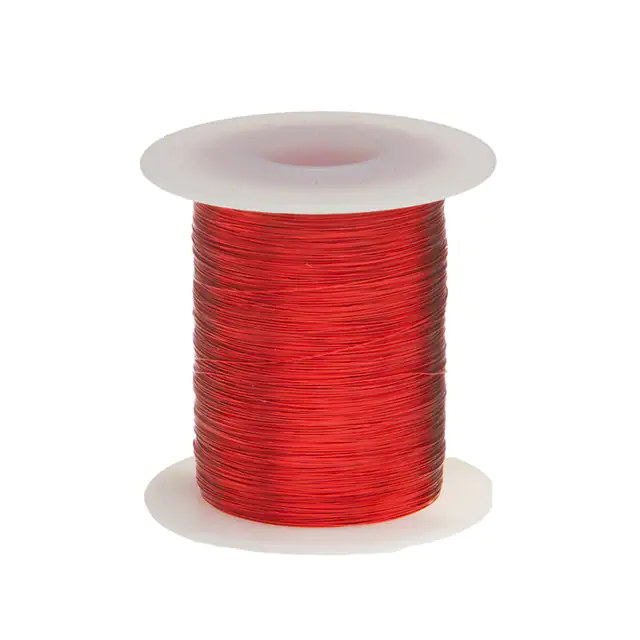

27SNSP.2527SNSP.25 MAGNET WIRE, ENAMELED |
1,720 |
|
Datasheet | - | Bag | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 400.0' (122m) | MW 80-C | 0.25 lbs (113.4 g) |
|

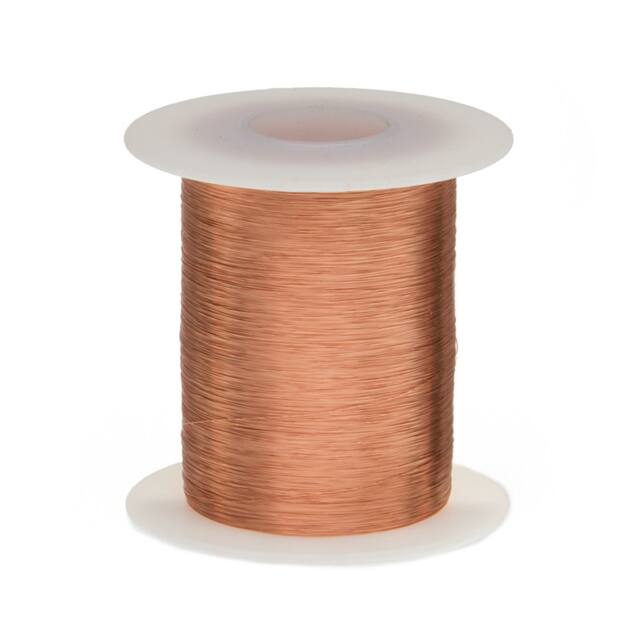

27HNSP.125#27 HVY MAG WIRE, 155C NAT 2OZ |
2,661 |
|
Datasheet | - | Box | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.016" (0.41mm) | 196.0' (60m) | MW 80-C | 0.13 lbs (56.7 g) |
|
20HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
1,960 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 39.0' (12m) | MW 80-C | 0.13 lbs (56.7 g) |
