Machine Vision - Lenses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Focal Length | Magnification | Focal Ratio | Compatible Sensor Size (Max) | Field of View | Working Distance | Depth Of Field | Resolution | TV Distortion | Filter Size | Diameter | Length | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0701-276-000-40LENS STD F4 0.066X-0.25X FLEX |
2,292 |
|
Datasheet | Rodagon-WA | Box | Active | Standard | 60.0mm | 0.066x ~ 0.25x | F4 | - | 74.0mm | 280mm ~ 965mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 40.8mm | Flexible | - |
|
0703-082-000-20LENS TELPHOT F5.6 0.85-1.2X FLEX |
2,969 |
|
Datasheet | inspec.x L | Box | Active | Telephoto | 105.0mm | 0.85x ~ 1.2x | F5.6 | - | 82.0mm | 153mm ~ 190mm | - | 5µm | - | M43 x P0.75 | 61.4mm Dia | 72.5mm | Flexible | - |
|

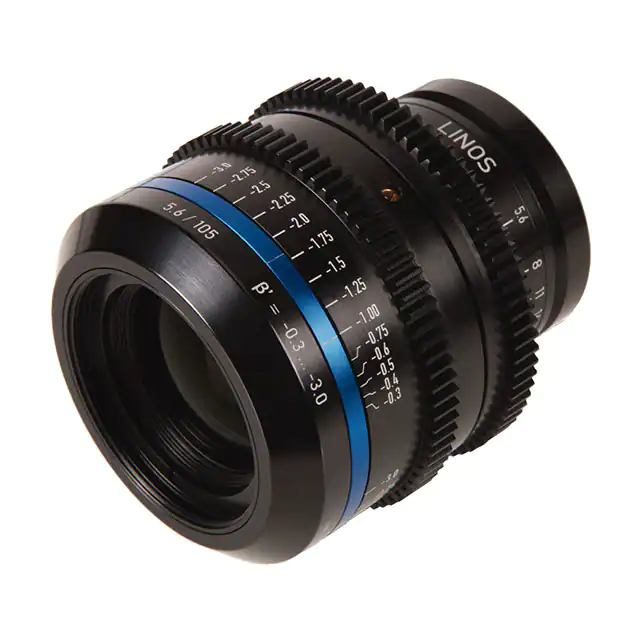

0703-114-000-20LENS TELEPHOTO F5.6 0.3X-3X FLEX |
2,541 |
|
Datasheet | inspec.x L | Box | Active | Telephoto | 105.0mm | 0.3x ~ 3x | F5.6 | - | 82.0mm | 99.6mm ~ 417.5mm | - | 5µm | 0.4% | M43 x P0.75 | 65.6mm Dia | 72.8mm | Flexible | - |
|
|
0703-102-000-20LENS TELPHOT F3.5 4.8X-5.2X FLEX |
2,796 |
|
Datasheet | inspec.x L | Box | Active | Telephoto | 105.0mm | 4.8x ~ 5.2x | F3.5 | - | 82.0mm | 66mm ~ 68mm | - | 5µm | - | M46 x P0.75 | 53.0mm Dia | 98.4mm | Flexible | - |
|
0801-398-000-41LENS TELPHOT F4.5 0.125-0.5X FLX |
3,418 |
|
Datasheet | Rogonar-S | Box | Active | Telephoto | 90.0mm | 0.125x ~ 0.5x | F4.5 | - | 82.0mm | 252mm ~ 794mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 36.7mm | Flexible | - |
|
|
0703-118-000-26LENS STD F5.6 0.05X-0.5X M42-MT |
2,228 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 40.0mm | 0.05x ~ 0.5x | F5.6 | - | 44.0mm | 94mm ~ 1027mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 81.7mm | M42-Mount | - |
|
|
0020-007-000-21LENS WIDE ANG F4 0X-0.1X C-MOUNT |
4,445 |
|
Datasheet | MeVis-CF | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F4 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M30 x P0.75 | 40.5mm Dia | 47.6mm | C-Mount | - |
|
|
0020-007-000-20LENS W ANG F1.6 0X-0.1X C-MT |
4,333 |
|
Datasheet | MeVis-CF | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M30 x P0.75 | 40.5mm Dia | 47.6mm | C-Mount | - |
|
0020-007-000-22LENS W ANG F2.8 0X-0.1X C-MT |
3,330 |
|
Datasheet | MeVis-CF | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F2.8 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M30 x P0.75 | 40.5mm Dia | 47.6mm | C-Mount | - |
|
|
0020-008-000-22LENS STD F4 0X-0.1X C-MOUNT |
2,258 |
|
Datasheet | MeVis-CF | Box | Obsolete | Standard | 35.0mm | 0x ~ 0.1x | F4 | 1" | 16.0mm | 370mm (Min) | - | 2µm | - | M30 x P0.75 | 40.5mm Dia | 59.0mm | C-Mount | - |
