Machine Vision - Lenses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Focal Length | Magnification | Focal Ratio | Compatible Sensor Size (Max) | Field of View | Working Distance | Depth Of Field | Resolution | TV Distortion | Filter Size | Diameter | Length | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0020-001-000-40LENS STD F1.6 0X-0.1X C-MOUNT |
3,598 |
|
Datasheet | MeVis-C | Box | Active | Standard | 35.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 370mm (Min) | - | 2µm | - | M35.5 x P0.5 | 42.0mm Dia | 63.2mm | C-Mount | - |
|
0703-043-000-20LENS TELPHOT F5.6 0.33-0.8X FLEX |
3,491 |
|
Datasheet | Apo-Rodagon-D | Box | Active | Telephoto | 120.0mm | 0.33x ~ 0.8x | F5.6 | - | 82.0mm | 242mm ~ 456mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 43.5mm | Flexible | - |
|
0703-109-000-20LENS STD F5.6 0.35X-0.65X FLEX |
1,747 |
|
Datasheet | Apo-Rodagon-HR | Box | Active | Standard | 75.0mm | 0.35x ~ 0.65x | F5.6 | - | 62.0mm | 172mm ~ 273mm | - | 5µm | - | M37 x P0.75 | 46.0mm Dia | 47.0mm | Flexible | - |
|
0703-094-000-20LENS TELPHOT F4 0.066X-0.5X FLEX |
3,758 |
|
Datasheet | Apo-Rodagon-N | Box | Active | Telephoto | 90.0mm | 0.066x ~ 0.5x | F4 | - | 43.3mm | 241mm ~ 1426mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 44.4mm | Flexible | - |
|
|
0703-119-000-24LENS STD F2.8 0.033X-0.5X M42-MT |
2,940 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 50.0mm | 0.033x ~ 0.5x | F2.8 | - | 46.0mm | 124mm ~ 1545mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 93.0mm | M42-Mount | - |
|
|
0703-089-000-25LENS STD F4 0X-0.5X F-MOUNT |
4,145 |
|
Datasheet | Rodagon-F | Box | Active | Standard | 50.0mm | 0x ~ 0.5x | F4 | - | 43.3mm | 124mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 51.9mm | F-Mount | - |
|

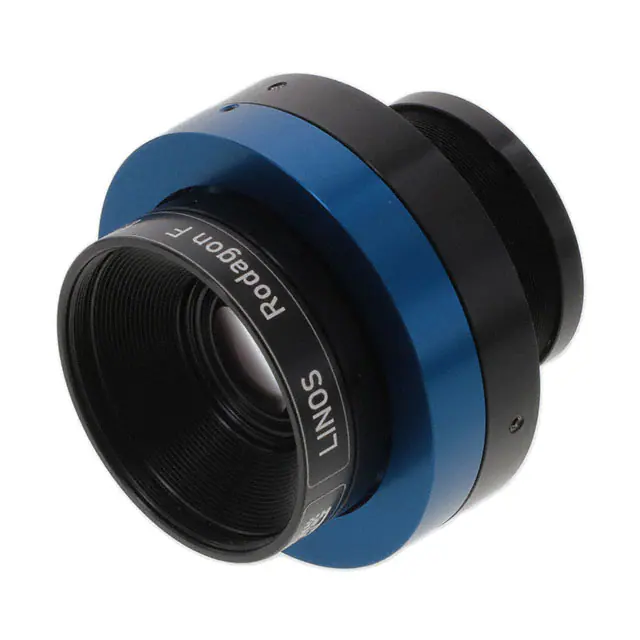

0703-089-000-26LENS STD F5.6 0X-0.5X F-MOUNT |
2,906 |
|
Datasheet | Rodagon-F | Box | Active | Standard | 50.0mm | 0x ~ 0.5x | F5.6 | - | 43.3mm | 124mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 51.9mm | F-Mount | - |
|

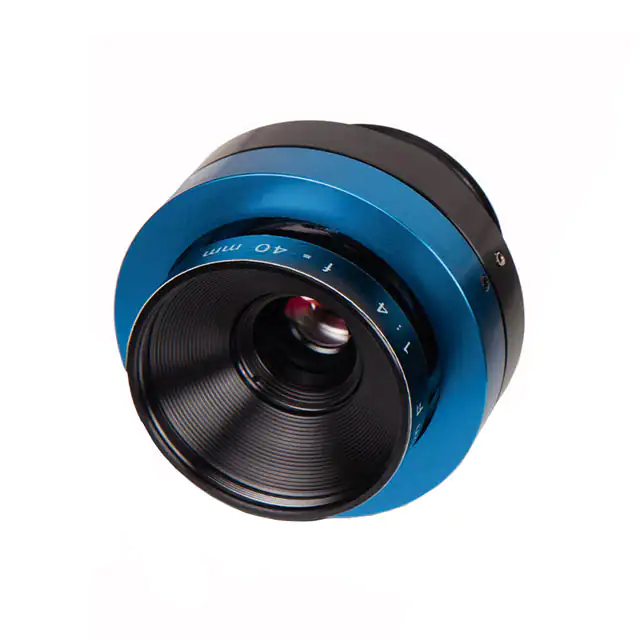

0703-090-000-27LENS STD F8 0X-0.5X F-MOUNT |
1,094 |
|
Datasheet | Rodagon-F | Box | Active | Standard | 40.0mm | 0x ~ 0.5x | F8 | - | 44.0mm | 94mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 45.9mm | F-Mount | - |
|
|
0703-090-000-26LENS STD F5.6 0X-0.5X F-MOUNT |
3,752 |
|
Datasheet | Rodagon-F | Box | Active | Standard | 40.0mm | 0x ~ 0.5x | F5.6 | - | 44.0mm | 94mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 45.9mm | F-Mount | - |
|
0703-087-000-25LENS STD F4 0X-0.5X F-MOUNT |
2,479 |
|
Datasheet | Rodagon-F | Box | Active | Standard | 60.0mm | 0x ~ 0.5x | F4 | - | 56.0mm | 159mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 70.2mm | F-Mount | - |
