Light Curtains
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Protection | Detection Capability | Protective Height | Number of Beams | Beam Pitch | Operating Range | Features | Ingress Protection | Operating Temperature | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF4D-H40LIGHT CURTAIN HAND 25MM |
1,795 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 790mm | 40 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
SF4D-H56LIGHT CURTAIN HAND 25MM |
3,513 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 1110mm | 56 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
SF2C-H8-PLIGHT CURTAIN HAND 25MM |
4,318 |
|
Datasheet | SF2C | Bulk | Active | Hand | 25mm | 160mm | 8 | 20mm | 0.1m ~ 3.0m | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4C-H24-J05LIGHT CURTAIN HAND 25MM |
2,349 |
|
Datasheet | SF4C | Box | Active | Hand | 25mm | 480mm | 24 | 20mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4C-F31-J05LIGHT CURTAIN FINGER 14MM |
2,256 |
|
Datasheet | SF4C | Box | Active | Finger | 14mm | 320mm | 31 | 10mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4C-H32-J05LIGHT CURTAIN HAND 25MM |
3,193 |
|
Datasheet | SF4C | Box | Active | Hand | 25mm | 640mm | 32 | 20mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|

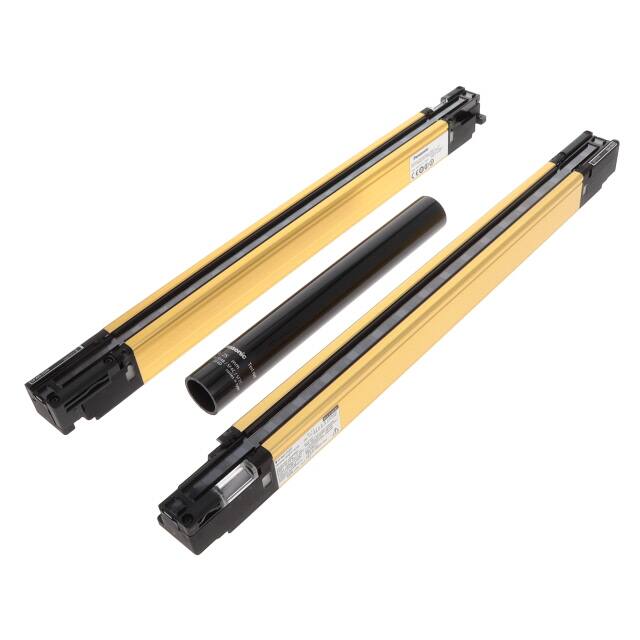

SF4D-H20LIGHT CURTAIN HAND 25MM |
1,700 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 390mm | 20 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
SF4D-H28LIGHT CURTAIN HAND 25MM |
1,059 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 550mm | 28 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
|
SF2B-A4SLLIGHT CURTAIN ARM/FOOT 47MM |
2,709 |
|
Datasheet | SF2B | Box | Obsolete | Arm/Foot | 47mm | 168mm | 4 | 40mm | 0.2m ~ 13.0m | - | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
|
|
SF2B-A6SLLIGHT CURTAIN ARM/FOOT 47MM |
4,076 |
|
Datasheet | SF2B | Box | Obsolete | Arm/Foot | 47mm | 232mm | 6 | 40mm | 0.2m ~ 13.0m | - | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
