Light Curtains
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Protection | Detection Capability | Protective Height | Number of Beams | Beam Pitch | Operating Range | Features | Ingress Protection | Operating Temperature | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF4B-H32CLIGHT CURTAIN HAND 25MM |
4,605 |
|
Datasheet | SF4B-C | Bulk | Active | Hand | 25mm | 663mm | 32 | 20mm | 0.3m ~ 7.0m | Blanking, Muting Function | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
|
SF4D-H36LIGHT CURTAIN HAND 25MM |
1,985 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 710mm | 36 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
SF4C-H12LIGHT CURTAIN HAND 25MM |
1,239 |
|
Datasheet | SF4C | Box | Active | Hand | 25mm | 240mm | 12 | 20mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4D-H16LIGHT CURTAIN HAND 25MM |
3,123 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 310mm | 16 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
SF4C-H28-J05LIGHT CURTAIN HAND 25MM |
1,706 |
|
Datasheet | SF4C | Box | Active | Hand | 25mm | 560mm | 28 | 20mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4C-H32LIGHT CURTAIN HAND 25MM |
4,719 |
|
Datasheet | SF4C | Box | Active | Hand | 25mm | 640mm | 32 | 20mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4D-H48LIGHT CURTAIN HAND 25MM |
4,217 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 950mm | 48 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
|
SF4D-H72LIGHT CURTAIN HAND 25MM |
1,681 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 1430mm | 72 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
SF4D-H80LIGHT CURTAIN HAND 25MM |
2,167 |
|
Datasheet | SF4D | Box | Active | Hand | 25mm | 1590mm | 80 | 20mm | 0.2m ~ 9.0m, 0.8m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|

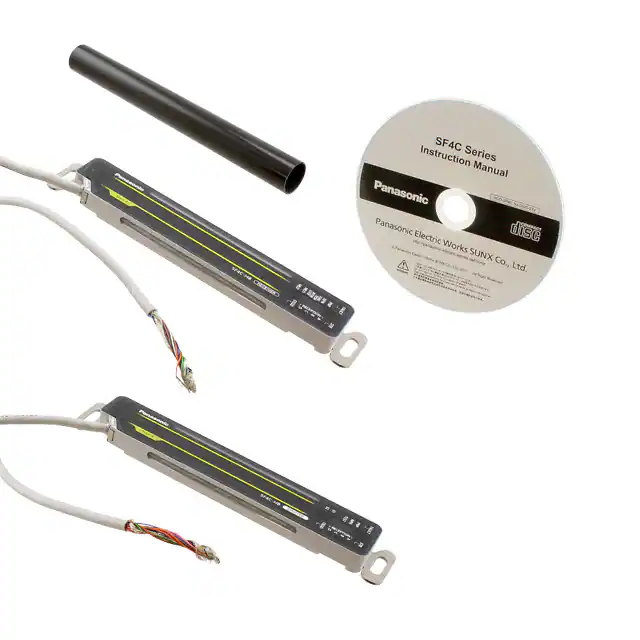

SF4C-H8LIGHT CURTAIN HAND 25MM |
4,031 |
|
Datasheet | SF4C | Box | Active | Hand | 25mm | 160mm | 8 | 20mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
