Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83137003SWITCH SNAP ACTION SPDT 5A 125V |
2,145 |
|
Datasheet | 83137 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | - | 0.122gfm | 0.029gfm | - | - | 10° | 12° | -20°C ~ 125°C |
|
83581101SWITCH SNAP ACTION SPDT 10A 250V |
1,324 |
|
Datasheet | 83581 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Roller Plunger | Panel Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 510gf | - | - | - | 0.040" (1.0mm) | 0.098" (2.5mm) | -20°C ~ 85°C |
|
83733315SWITCH SNAP ACTION SPDT 5A 50V |
2,539 |
|
Datasheet | 83733 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 50 V | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP56 - Dust Protected, Water Resistant | Cable Length 0.5m | 612gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|
83733310SWITCH SNAP ACTION SPDT 5A 50V |
3,477 |
|
Datasheet | 83733 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 50 V | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP56 - Dust Protected, Water Resistant | Cable Length 2m | 612gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|
83871101SWITCH SNAP ACTION DPST 6A 120V |
4,157 |
|
Datasheet | 83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
|
83871103SWITCH SNAP ACTION DPST 6A 120V |
3,100 |
|
Datasheet | 83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|

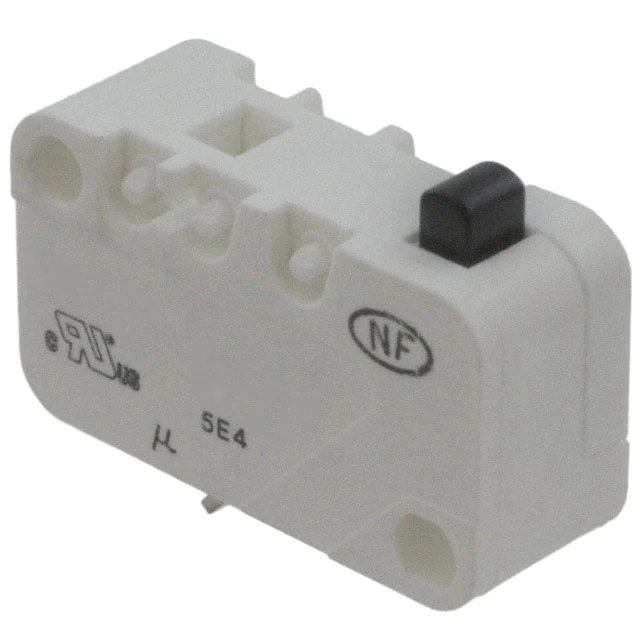

83168021SWITCH SNAP ACT SPDT 0.1A 250V |
4,543 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
X0231341SWITCH SNAP ACTION SPDT 5A 125V |
1,648 |
|
Datasheet | 83132 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 82gf | 17gf | 0.610" (15.5mm) | 0.081" (2.05mm) | 0.037" (0.94mm) | - | -20°C ~ 125°C |
|
83589801SWITCH SNAP ACTION SPDT 8A 250V |
2,925 |
|
Datasheet | 83589 | Bulk | Active | SPDT | On-Mom | 8A (AC), 200mA (DC) | 250 V | 24 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 0.5m | 1020gf | - | - | - | 0.004" (0.1mm) | - | -40°C ~ 85°C |
|
83731310SWITCH SNAP ACTION SPDT 5A 250V |
4,890 |
|
Datasheet | 83731 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 2m | 1530gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
