Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83274022SWITCH SNAP ACTION SPDT 5A 250V |
3,139 |
|
Datasheet | V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 16gf | 3.059gf | 0.394" (10.0mm) | - | 0.020" (0.5mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
83263814SWITCH SNAP ACT SPST-NO 16A 250V |
1,408 |
|
Datasheet | V3D | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 31gf | 6.118gf | 0.606" (15.4mm) | - | 0.050" (1.3mm) | 0.130" (3.3mm) | -20°C ~ 125°C |
|
|
83263014SWITCH SNAP ACTION SPDT 16A 250V |
4,675 |
|
Datasheet | V3D | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 31gf | 6.118gf | 0.606" (15.4mm) | - | 0.050" (1.3mm) | 0.130" (3.3mm) | -20°C ~ 125°C |
|

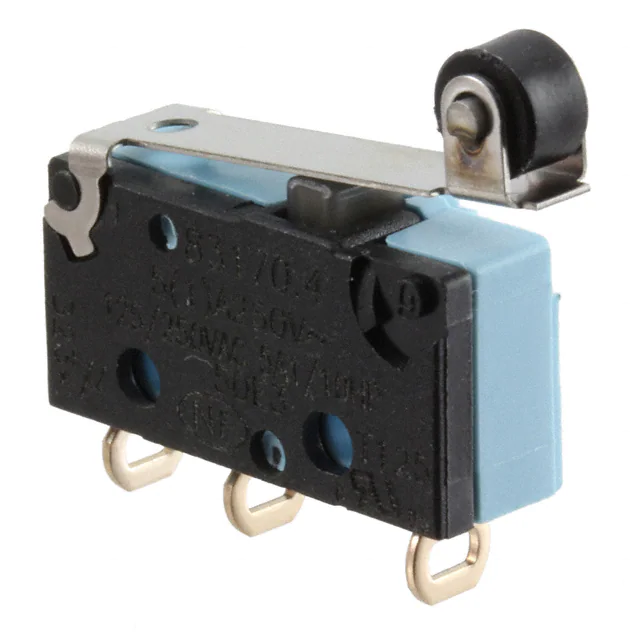

83170442MICROSWITCH V4 831704 I W2 LEVE |
857 |
|
Datasheet | 83170 | Box | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Right Side | 41gf | 7.000gf | 0.571" (14.5mm) | - | 0.009" (0.23mm) | 0.029" (0.74mm) | -20°C ~ 130°C |
|
831613C6.0SWITCH. ACTUATOR TYPE: NO ACTUAT |
868 |
|
- |
83161 | Box | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.20mm) | -20°C ~ 125°C |
|

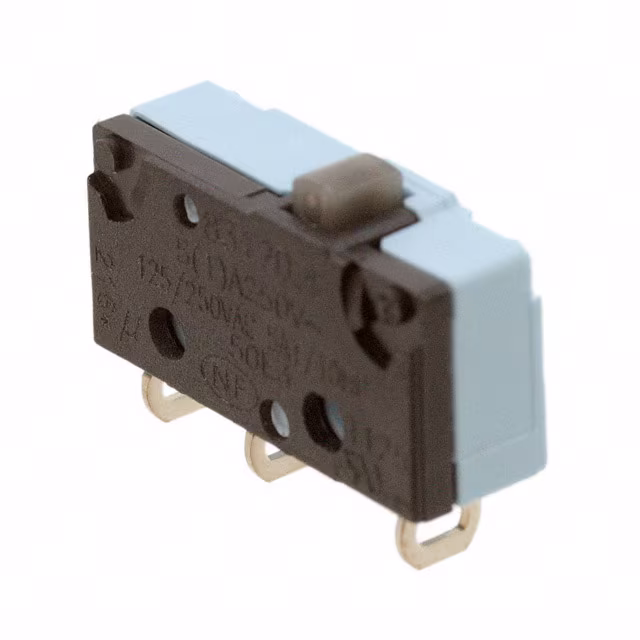

831704C2.0SWITCH SNAP ACTION SPDT 5A 250V |
1,275 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
83161344SWITCH SNAP ACTION SPDT 16A 250V |
341 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
83161312SWITCH SNAP ACTION SPDT 16A 250V |
4,292 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -60°C ~ 150°C |
|
831700C2.FLSWITCH SNAP ACTION SPDT 10A 250V |
168 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Left Side | 51gf | 10gf | 0.512" (13.0mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
83200003SWITCH SNAP ACTION SPDT 4A 250V |
789 |
|
Datasheet | 83200 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 153gf | 20gf | 0.413" (10.5mm) | - | 0.006" (0.15mm) | 0.079" (2.0mm) | -40°C ~ 90°C |
