Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831619C6.BASWITCH SNAP ACT SPDT 0.1A 250V |
2,876 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 6.000gf | 1.300gf | 0.600" (15.2mm) | - | 0.055" (1.4mm) | 0.172" (4.4mm) | -20°C ~ 125°C |
|

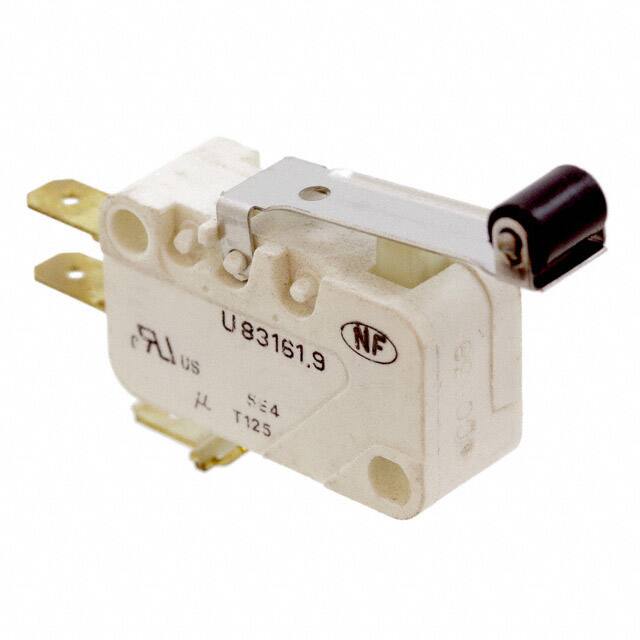

831619C6.GBSWITCH SNAP ACT SPDT 0.1A 250V |
1,162 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 13gf | 2.500gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.087" (2.2mm) | -20°C ~ 125°C |
|
|
831690AC.5.0SWITCH SNAP ACT SPST-NO 8A 125V |
4,183 |
|
Datasheet | 83169 | Bulk | Active | SPST-NO | Off-Mom | 8A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
|
831690BC.5.0SWITCH SNAP ACT SPST-NC 8A 125V |
4,428 |
|
Datasheet | 83169 | Bulk | Active | SPST-NC | On-Mom | 8A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
|
831690CC1.2M.FBSWITCH SNAP ACTION SPDT 8A 125V |
4,594 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 8A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1.2m | 265gf | 51gf | - | - | 0.031" (0.8mm) | - | -20°C ~ 85°C |
|
|
831690CL.5.EBSWITCH SNAP ACTION SPDT 10A 125V |
4,687 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 428gf | 102gf | - | - | 0.016" (0.4mm) | - | -20°C ~ 85°C |
|
|
831690CR.5.BBSWITCH SNAP ACTION SPDT 10A 125V |
4,651 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 51gf | - | - | 0.031" (0.8mm) | - | -20°C ~ 85°C |
|
|
831698CR.5.RSWITCH SNAP ACTION SPDT 0.1A 30V |
4,195 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 41gf | - | - | 0.047" (1.2mm) | - | -20°C ~ 85°C |
|
831700B1.0SWITCH SNAP ACT SPST-NC 10A 250V |
2,023 |
|
Datasheet | 83170 | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831700B1.ALSWITCH SNAP ACT SPST-NC 10A 250V |
4,531 |
|
Datasheet | 83170 | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 51gf | 10gf | 0.409" (10.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
