Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831612C6.DBSWITCH SNAP ACTION SPDT 20A 250V |
3,660 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 23gf | 6.000gf | 0.600" (15.2mm) | - | 0.047" (1.2mm) | 0.164" (4.2mm) | -20°C ~ 125°C |
|
831612C6.EBSWITCH SNAP ACTION SPDT 20A 250V |
1,331 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.806" (20.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|

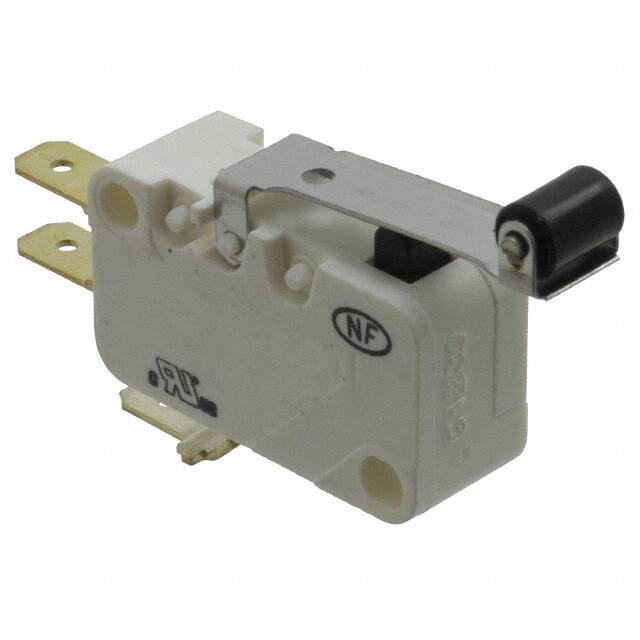

831612C6.GBSWITCH SNAP ACTION SPDT 20A 250V |
2,677 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 10gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
|
|
831613A6.45SWITCH SNAP ACTION |
4,393 |
|
Datasheet | 83161 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831613C3.ABSWITCH SNAP ACTION SPDT 16A 250V |
4,933 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.600" (15.2mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831613C3.BCSWITCH SNAP ACTION SPDT 16A 250V |
2,486 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 54gf | 14gf | 0.600" (15.2mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -20°C ~ 125°C |
|
|
831613C3.F3ASWITCH SNAP ACTION 16A 1-4 |
4,634 |
|
Datasheet | 83161 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
831613C6.0.90SWITCH SNAP ACTION SPDT 16A 250V |
2,712 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831613C6.CB.90SWITCH SNAP ACTION SPDT 16A 250V |
2,658 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 27gf | 7.000gf | 0.600" (15.2mm) | - | 0.041" (1.05mm) | 0.141" (3.6mm) | -20°C ~ 125°C |
|

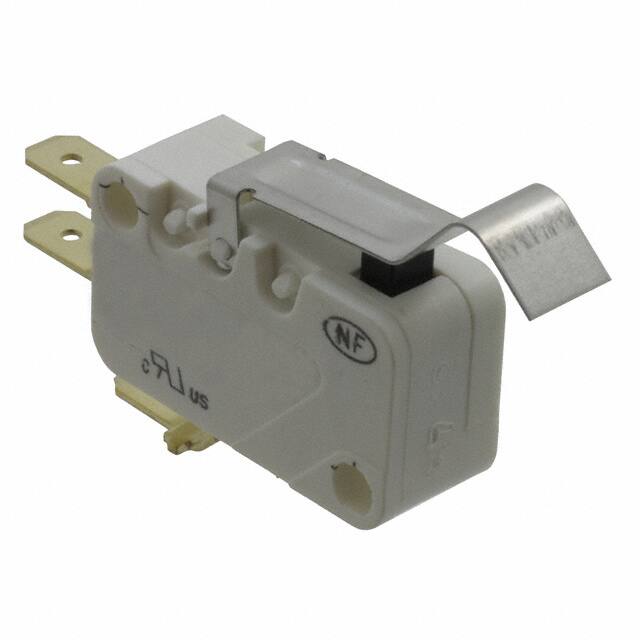

831613C6.FBSWITCH SNAP ACTION SPDT 16A 250V |
4,153 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 11gf | 0.806" (20.5mm) | - | 0.025" (0.6mm) | 0.085" (2.16mm) | -20°C ~ 125°C |
