Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83170802SWITCH SNAP ACT SPDT 0.1A 250V |
2,417 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
83170808SWITCH SNAP ACT SPDT 0.1A 250V |
3,817 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
83170437SWITCH SNAP ACTION SPDT 5A 250V |
1,051 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | Actuator Mounted Left Side | 20gf | 3.500gf | 0.409" (10.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
|
83170445SWITCH SNAP ACTION SPDT 5A 250V |
2,641 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 20gf | 3.500gf | 0.409" (10.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
|
83170447SWITCH SNAP ACTION SPDT 5A 250V |
1,054 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 15gf | 2.500gf | 0.437" (11.1mm) | - | 0.025" (0.6mm) | 0.079" (2.0mm) | -20°C ~ 130°C |
|

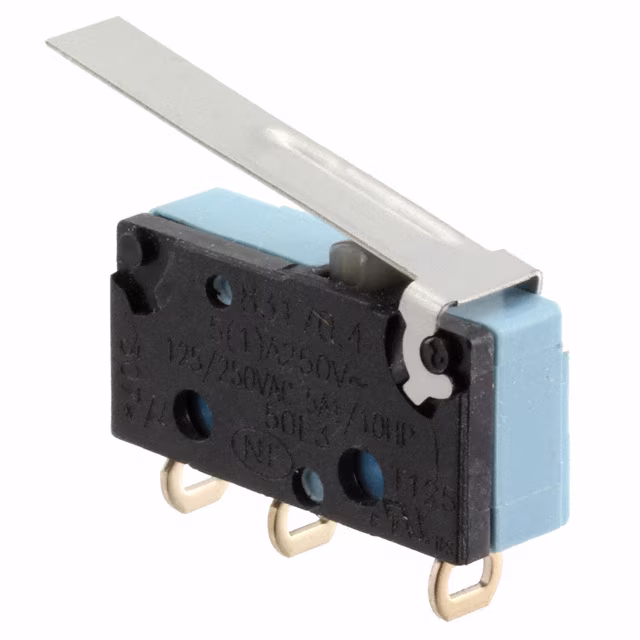

83170440SWITCH SNAP ACTION SPDT 5A 250V |
4,346 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | Actuator Mounted Left Side | 15gf | 2.500gf | 0.437" (11.1mm) | - | 0.025" (0.6mm) | 0.079" (2.0mm) | -20°C ~ 130°C |
|
|
83170481SWITCH SNAP ACTION SPDT 5A 250V |
1,567 |
|
Datasheet | 83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Mushroom Button | Through Hole | PC Pin | - | - | 61gf | 10gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
83161407SWITCH SNAP ACTION SPDT 10A 250V |
1,801 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 51gf | 10gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
83161404SWITCH SNAP ACT SPST-NO 10A 250V |
3,303 |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 51gf | 10gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
83161431SWITCH SNAP ACTION SPDT 10A 250V |
2,113 |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 51gf | 10gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
