Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831698CR.5.0SWITCH SNAP ACTION SPDT 0.1A 30V |
1,834 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
83870101SWITCH SNAP ACTION DPST 6A 120V |
2,538 |
|
Datasheet | 83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83731319SWITCH SNAP ACTION SPDT 5A 250V |
1,466 |
|
Datasheet | 83731 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 1m | 1530gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|
|
83870103SWITCH SNAP ACTION DPST 6A 120V |
4,193 |
|
Datasheet | 83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|

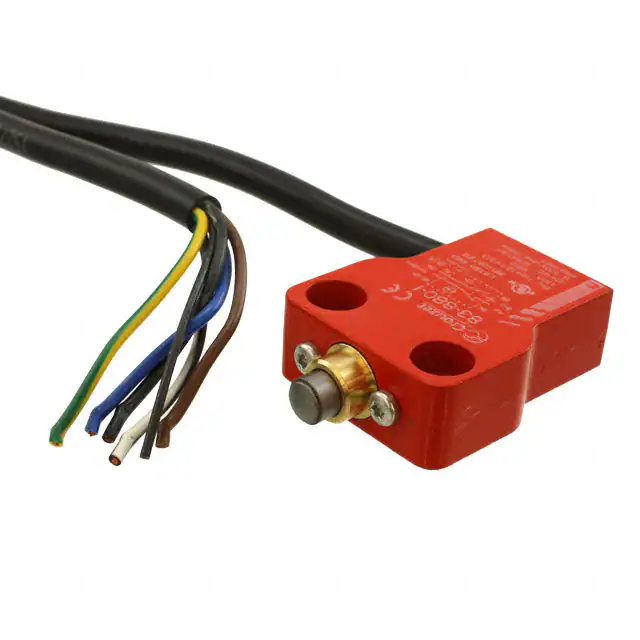

83880102SWITCH SNAP ACTION DPST 6A 250V |
4,712 |
|
Datasheet | 83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|

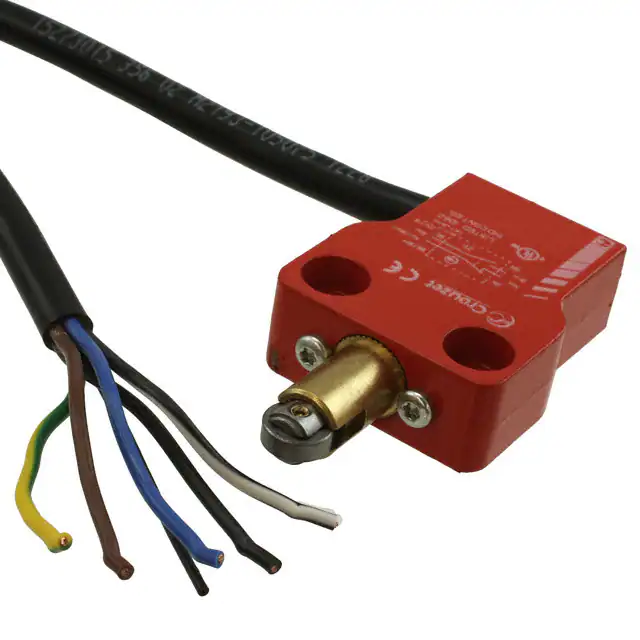

83881102SWITCH SNAP ACTION DPST 6A 250V |
3,812 |
|
Datasheet | 83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83881112SWITCH SNAP ACTION DPST 6A 250V |
1,480 |
|
Datasheet | 83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83843013SWITCH SNAP ACTION SPDT 6A 250V |
2,965 |
|
Datasheet | 83843 | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 20gfm | - | 25° | 25° | 7° | 60° | -20°C ~ 70°C |
|
83261001SWITCH SNAP ACTION SPDT 16A 250V |
4,641 |
|
Datasheet | V3D | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 204gf | 51gf | 0.579" (14.7mm) | - | 0.016" (0.4mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|

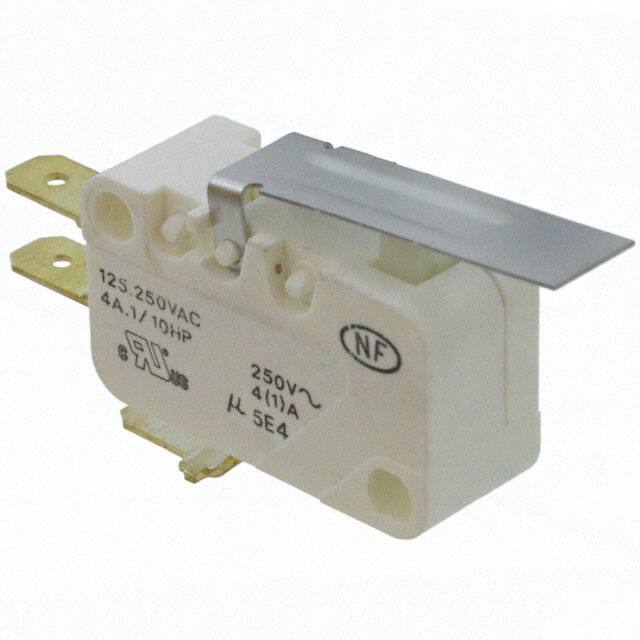

831615C6.BBSWITCH SNAP ACTION SPDT 4A 250V |
1,642 |
|
Datasheet | 83161 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 13gf | 2.500gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.087" (2.2mm) | -20°C ~ 125°C |
