Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007C52JSWITCH SNAP ACTION SPDT 6A 120V |
3,445 |
|
Datasheet | 9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C66B2SWITCH LIMIT DPDT 6A 120V |
3,549 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C52GSWITCH NEMA LIMIT SPDT 6A 120V |
1,809 |
|
Datasheet | 9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C52DSWITCH SNAP ACTION SPDT 6A 120V |
2,819 |
|
Datasheet | 9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

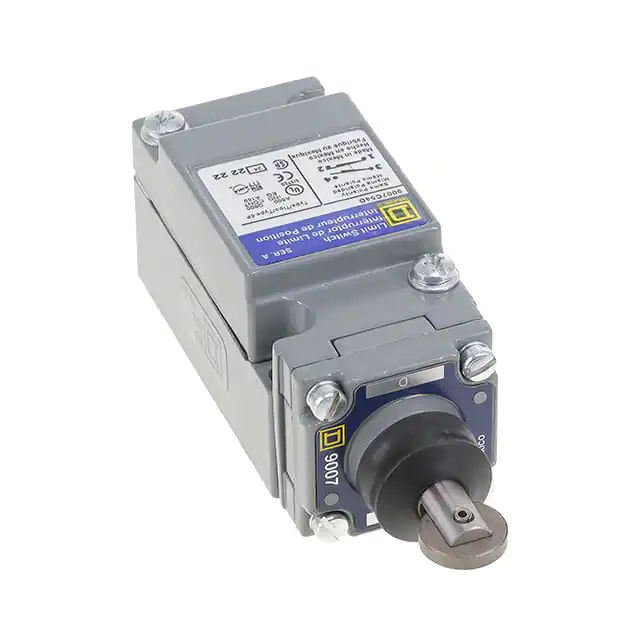

9007C54DSWITCH LIMIT SPDT 1.2A 600V |
3,669 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54GDSWITCH SNAP ACT SPDT 1.2A 600V |
2,743 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Adjustable Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
L100WNS2M26SWITCH LIMIT DPST 20A 120V |
2,145 |
|
Datasheet | - | Box | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007TUB1SWITCH NEMA LIMIT SPDT 20A 120V |
4,032 |
|
Datasheet | 9007T | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|

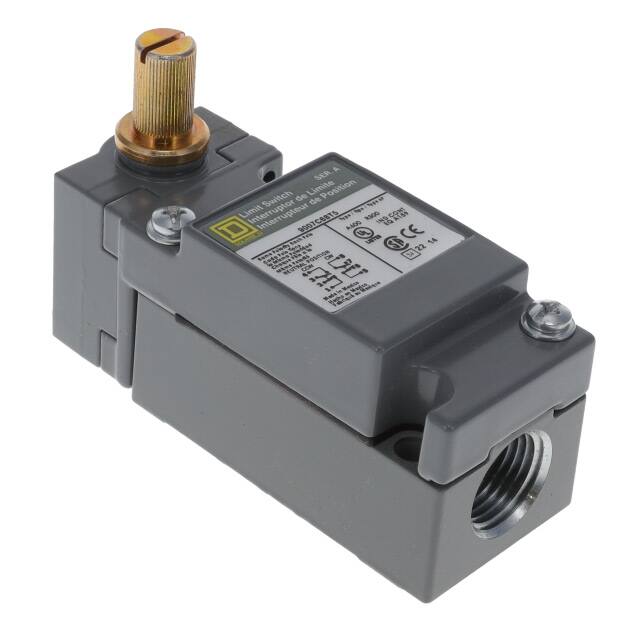

9007C68T5SWITCH LIMIT DPDT 1.2A 600V |
2,494 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 1.2A (AC), 110mA (DC) | 600 V | 250 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54B2Y1901SWITCH LIMIT SPDT 6A 120V |
2,413 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
