Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

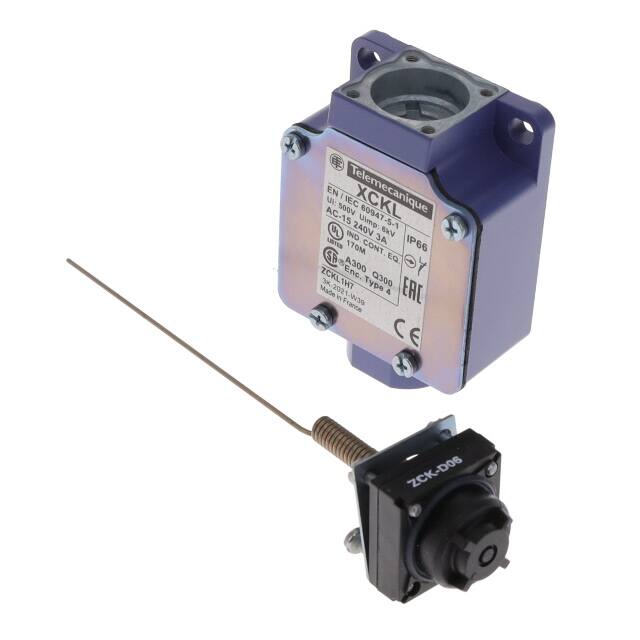

XCKL106H7SWITCH LIMIT DPDT 3A 240V |
2,426 |
|
Datasheet | XCKL | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007CB33S1SWITCH SNAP ACTION DPDT 3A 120V |
2,793 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 3A (AC), 200mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007MS01S0306SWITCH LIMIT SPDT 6A 120V |
3,221 |
|
Datasheet | 9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
9007C54ESWITCH LIMIT SPDT 1.2A 600V |
3,428 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54KSWITCH LIMIT SPDT 1.2A 600V |
4,859 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

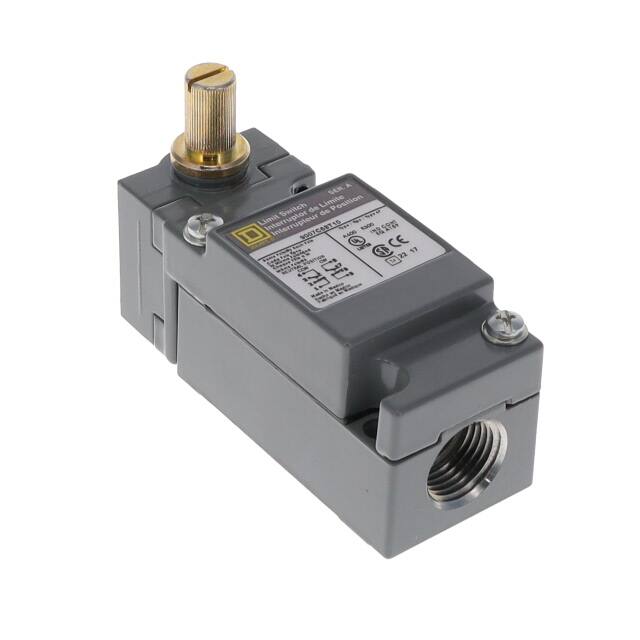

9007C68T10SWITCH LIMIT DPDT 1.2A 600V |
3,356 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 1.2A (AC), 110mA (DC) | 600 V | 250 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

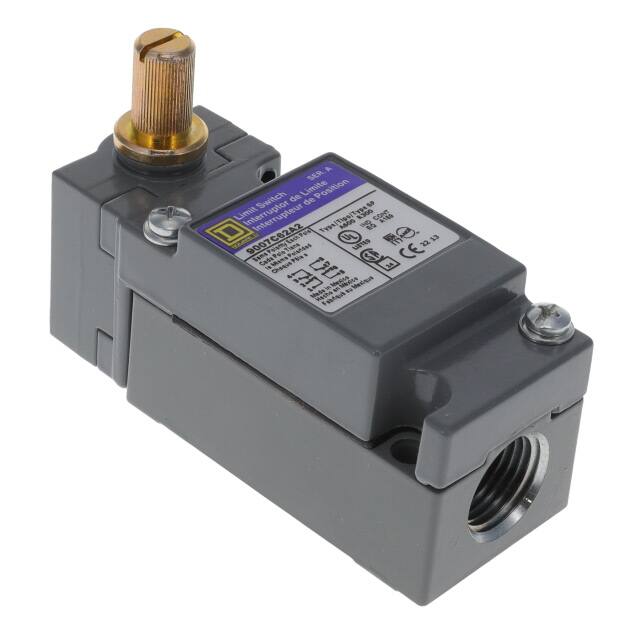

9007C62A2SWITCH LIMIT DPDT 6A 120V |
3,346 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
XCKJ110513DSA9SWITCH SNAP ACTION SPDT 3A 240V |
1,285 |
|
Datasheet | - | Box | Active | SPDT | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007C54GSWITCH LIMIT SPDT 1.2A 600V |
4,432 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C54JSWITCH LIMIT SPDT 1.2A 600V |
4,226 |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
