Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

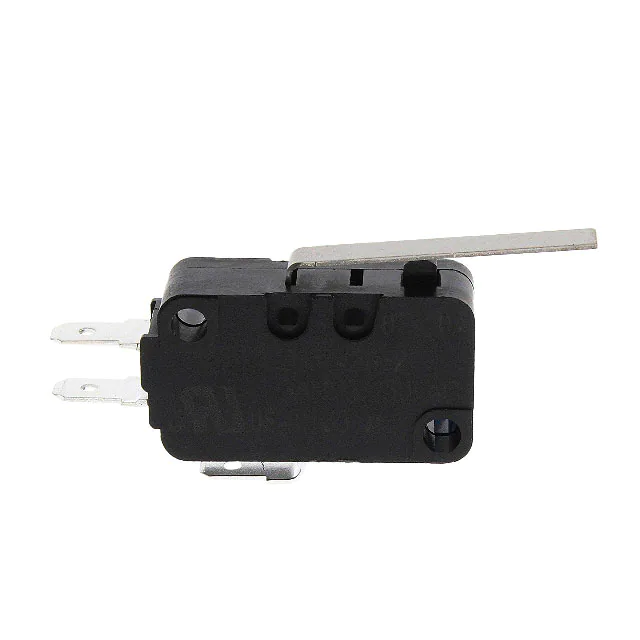

SAJ35XXHL0N49SDTFAQSWITCH SNAP ACTION SPDT 5A 125V |
845 |
|
Datasheet | SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | - | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
SAJ35XXSRLN49SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
796 |
|
Datasheet | SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 60gf | 4.000gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
SAJ35XXSRLN49SDTFAQSWITCH SNAP ACTION SPDT 5A 125V |
907 |
|
Datasheet | SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 4.000gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
HCP10DTE0S04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP16DTD1L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP10DTD1L04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP16DTD1S04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 190gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP10DTD1S04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 190gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP16DTE1L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP10DTD5S04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet | HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 220gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
