Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

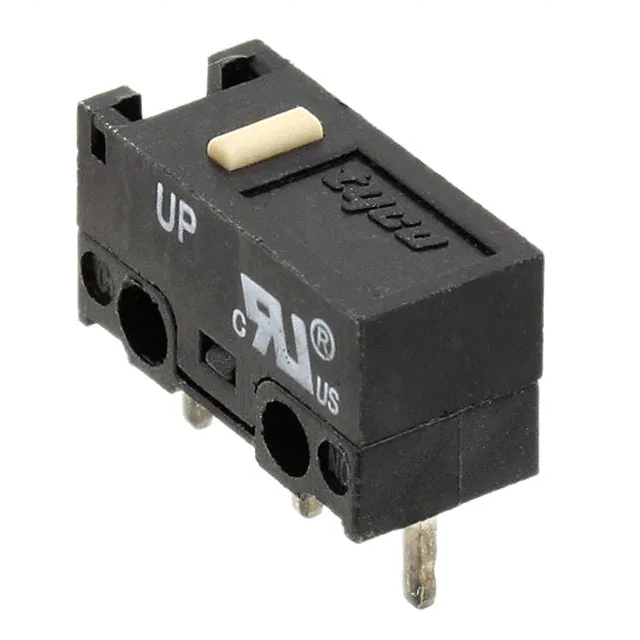

UP01DTAOLB04SWITCH SNAP ACT SPDT 0.1A 125V |
4,903 |
|
Datasheet | UP01 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.008" (0.2mm) | -40°C ~ 80°C |
|
UP01DTBOLB04SWITCH SNAP ACT SPDT 0.1A 125V |
2,553 |
|
Datasheet | UP01 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.008" (0.2mm) | -40°C ~ 80°C |
|
UP01DTCNLA04SWITCH SNAP ACT SPDT 0.1A 125V |
1,059 |
|
Datasheet | UP01 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 80°C |
|
|
UP3DTCNLB04SWITCH SNAP ACTION SPDT 3A 125V |
2,458 |
|
Datasheet | UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 125 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -25°C ~ 80°C |
|
|
UP3DTBOLA04SWITCH SNAP ACTION SPDT 3A 125V |
1,187 |
|
Datasheet | UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 35gf | 0.272" (6.9mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.008" (0.2mm) | -40°C ~ 80°C |
|
|
UP3DTCOLB04SWITCH SNAP ACTION SPDT 3A 125V |
1,563 |
|
Datasheet | UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 125 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.008" (0.2mm) | -25°C ~ 80°C |
|
|
UP3DTCNLA04SWITCH SNAP ACTION SPDT 3A 125V |
3,251 |
|
Datasheet | UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 125 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -25°C ~ 80°C |
|
|
1977816-1SWITCH SNAP ACTION PCB MOUNT |
2,567 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | Through Hole | PC Pin | - | - | - | - | - | - | - | - | - |
|
|
1517266-1SWITCH SNAP ACTION SPDT 10A 250V |
2,083 |
|
Datasheet | - | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | - |
