Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

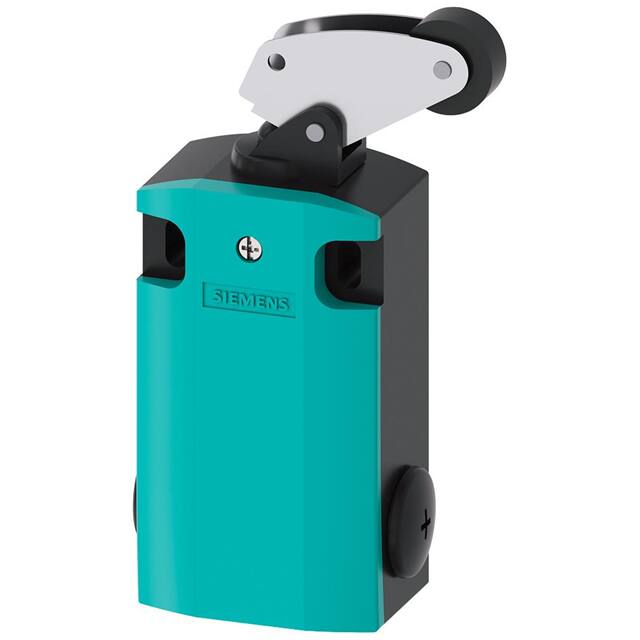

3SE51620CF01SWITCH LIMIT 4PST 6A 125V |
3,071 |
|
Datasheet | 3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51620CE01SWITCH LIMIT 4PST 6A 125V |
4,177 |
|
Datasheet | 3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1530gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE03AS3SWITCH LIMIT ROLLER PLUNGER |
2,433 |
|
- |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Side Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
3SE51141CH021AF3SWITCH SNAP ACTION DPST 3A 24V |
1,547 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 60°C |
|
3SF12141LC051BA1SWITCH LIMIT METAL PLUNGER 2NC |
1,406 |
|
Datasheet | SIRIUS | Box | Active | DPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
|
3SE51620BE01SWITCH LIMIT 4PST 6A 125V |
4,081 |
|
Datasheet | 3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1530gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
3SE03NN2SWITCH LIMIT SIDE ROTARY CENTER |
3,552 |
|
- |
- | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
3SE03BT1SWITCH LIMIT PLAIN TOP PLUNGER |
3,372 |
|
- |
- | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SF12141KC051BA1SWITCH LIMIT METAL PLUNGER 2NC |
4,573 |
|
Datasheet | SIRIUS | Box | Active | DPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SF11141LA001BA1SWITCH LIMIT RND PLUNGER 2NC |
4,103 |
|
Datasheet | SIRIUS | Box | Active | DPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 60°C |
