Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

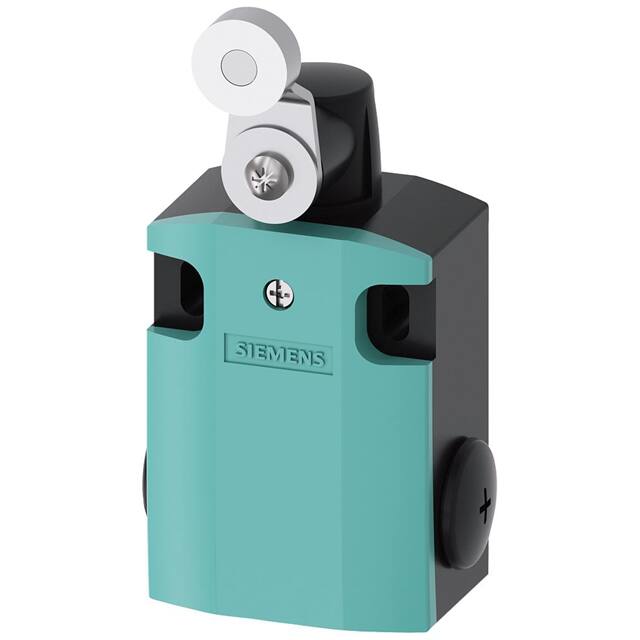

3SE51220LH02SWITCH LIMIT 3PST 6A 125V |
1,114 |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52141CC051AF3SWITCH LIMIT DPST 3A 24V |
3,725 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE51120LD021AJ0SWITCH SNAP ACTION 3PST 6A 125V |
2,622 |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -40°C ~ 85°C |
|
3SE54230CD201EB1SWITCH LIMIT DPST 6A 125V |
4,829 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1530gf | - | - | - | - | - | -25°C ~ 85°C |
|

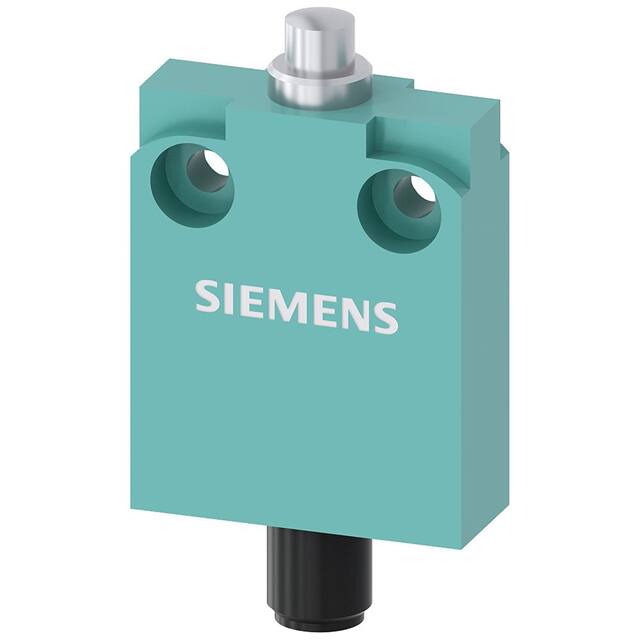

3SE54230CC201EB1SWITCH LIMIT DPST 6A 125V |
4,760 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
3SE52141BC051AF3SWITCH LIMIT DPST 3A 24V PLNGR |
1,406 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE51140CH011AC5SWITCH LIMIT DPST 4A 125V |
2,667 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|

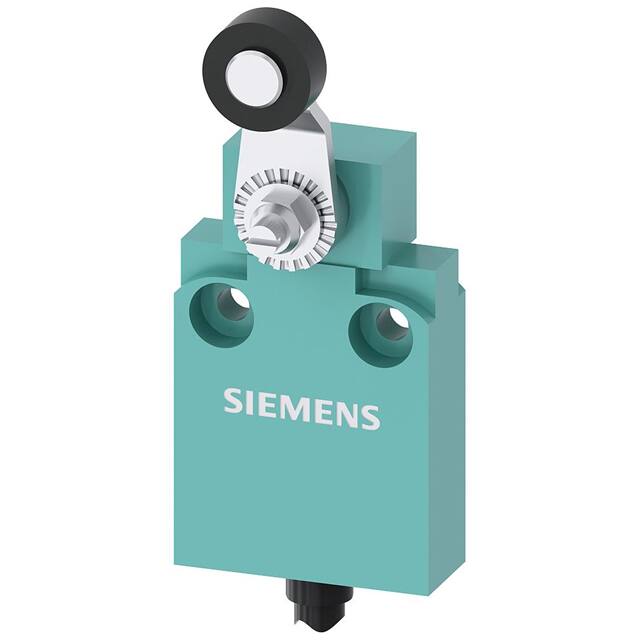

3SE54230CN201EA2SWITCH LIMIT DPST 6A 125V |
2,334 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120LH111AJ0SWITCH SNAP ACTION 3PST 6A 125V |
3,269 |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

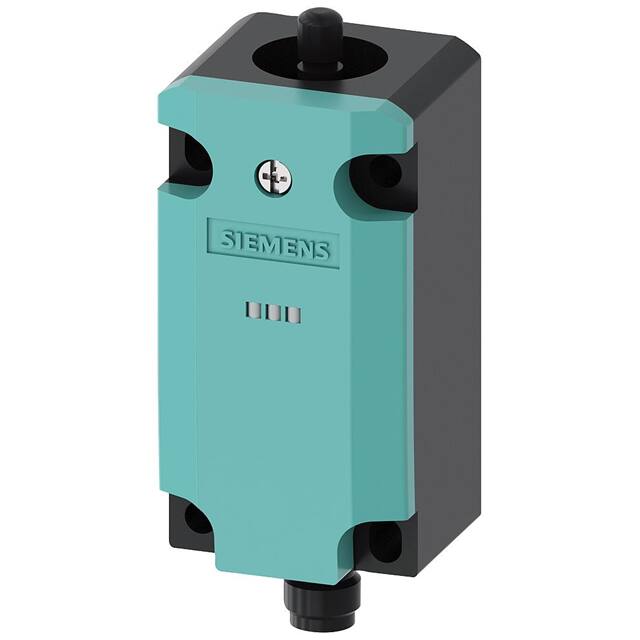

3SE51141CA001AF3SWITCH LIMIT DPST 3A 24V |
2,685 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
