Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SE51220CH02SWITCH LIMIT DPST 6A 125V |
3,150 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120BH02SWITCH LIMIT DPST 6A 125V |
1,407 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE54230CC201EA2SWITCH LIMIT DPST 6A 125V |
2,858 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|

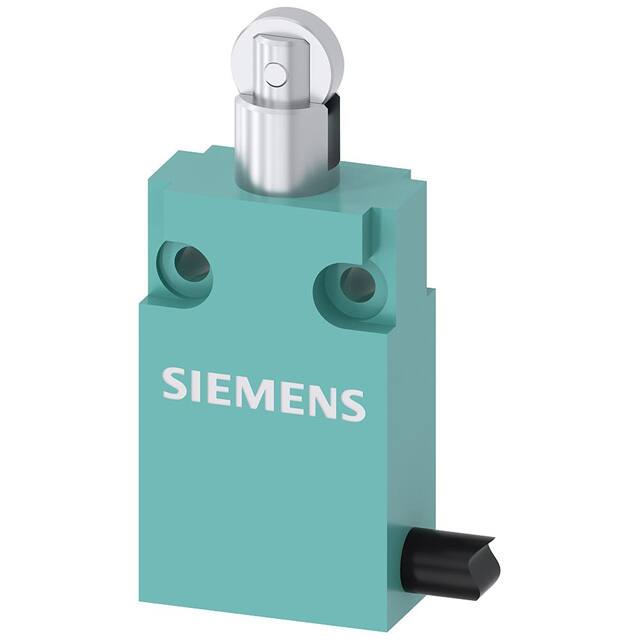

3SE54130CD201EA5SWITCH LIMIT DPST 6A 125V |
2,281 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1530gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE54130CD211EA2SWITCH LIMIT DPST 6A 125V |
1,490 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1530gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120CH51SWITCH LIMIT DPST 6A 125V |
3,369 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120CC021AJ0SWITCH LIMIT DPST 6A 125V |
2,124 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.118" (3.0mm) | -40°C ~ 85°C |
|
3SE51141BA001AF3SWITCH LIMIT DPST 3A 24V |
3,515 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE52440LE101AE0SWITCH LIMIT DPST-NC 4A 125V |
2,200 |
|
Datasheet | 3SE5 | Box | Active | DPST-NC | On-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|

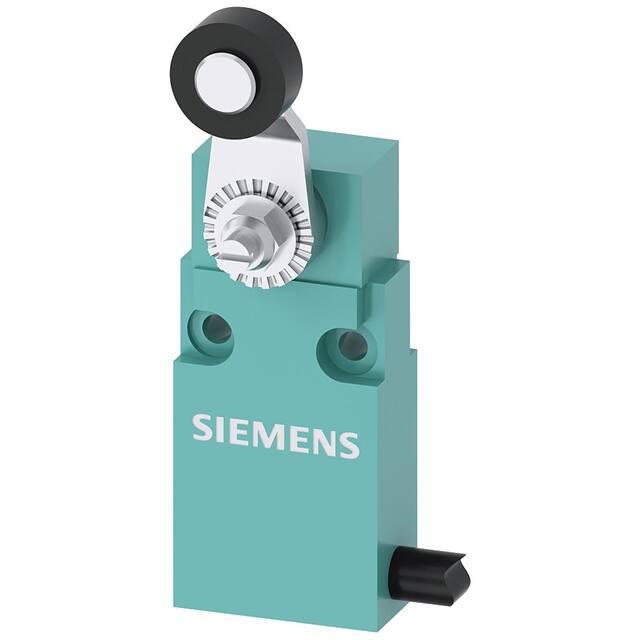

3SE54130CN201EA5SWITCH LIMIT DPST 6A 125V |
4,281 |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
