Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

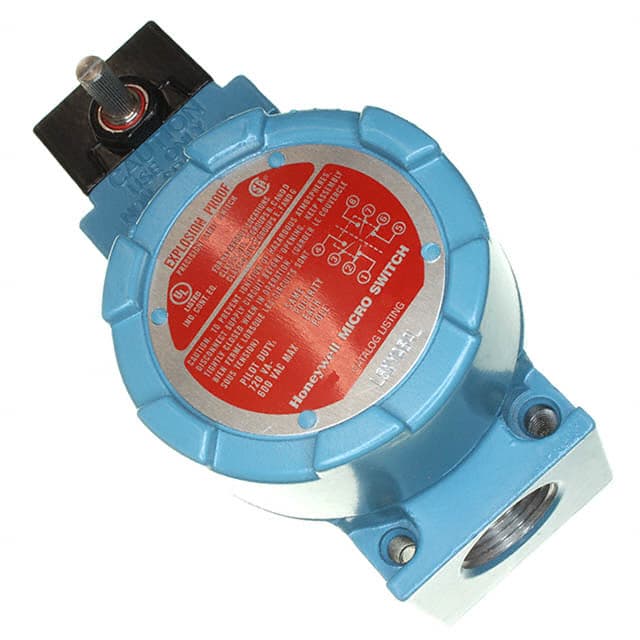

LSXYAB4LSWITCH SNAP ACTION DPDT 10A 120V |
3,634 |
|
Datasheet | LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
311SM702-TSWITCH SNAP ACTION SPDT 4A 250V |
1,465 |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 4A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 12gf | 2.039gfm | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
4SX36-TSWITCH SNAP ACTION SPDT 7A 250V |
2,208 |
|
Datasheet | SX | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -55°C ~ 204°C |
|
311SM3-H58SWITCH SNAP ACTION SPDT 5A 250V |
1,649 |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 15gf | 2.039gfm | 0.280" (7.1mm) | 0.310" (7.9mm) | 0.110" (2.8mm) | 0.057" (1.45mm) | -55°C ~ 125°C |
|
311SM605-H4SWITCH SNAP ACTION SPDT 5A 250V |
4,619 |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 30gf | 5.099gf | 0.460" (11.7mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
BA-2RLSWITCH SNAP ACTION SPDT 20A 125V |
1,066 |
|
Datasheet | BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Leaf | Chassis Mount | Solder Lug | - | - | 255gf | 28gf | 0.689" (17.5mm) | - | 0.065" (1.7mm) | 0.062" (1.6mm) | -55°C ~ 85°C |
|

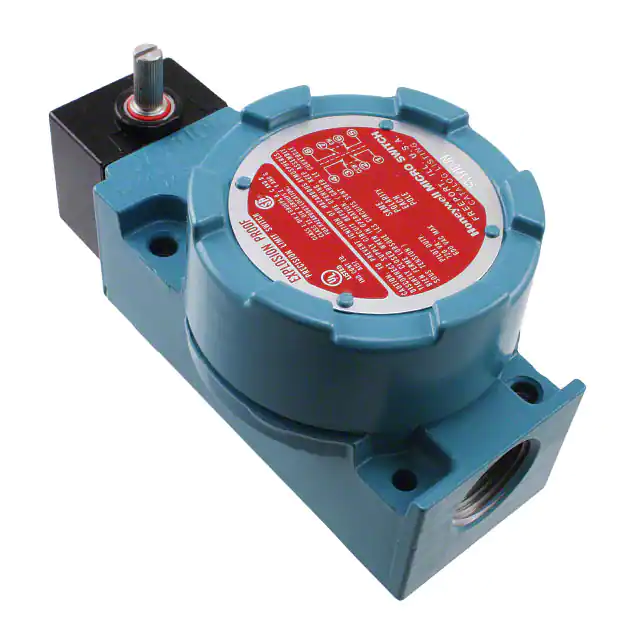

LSXYMB4NSWITCH SNAP ACTION DPDT 10A 120V |
1,376 |
|
Datasheet | LSX | Bulk | Active | DPDT | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 18° | 10° | 57° | -40°C ~ 121°C |
|
SZL-VL-BSWITCH SNAP ACTION SPDT 5A 250V |
4,527 |
|
Datasheet | SZL-VL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 250 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 342 ~ 800gf | 21 ~ 50gf | - | 20° | 10° | 75° | -20°C ~ 60°C |
|
924CE1-S3SWITCH SNAP ACTION SPDT 10A 250V |
1,506 |
|
Datasheet | 924CE | Bulk | Active | SPDT (BBM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 2300gf | - | 0.689" (17.5mm) | 0.087" (2.2mm) | - | 0.039" (1.0mm) | 0°C ~ 70°C |
|
GLBC02A4JSWITCH SNAP ACTION SPDT 6A 120V |
3,514 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
