Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

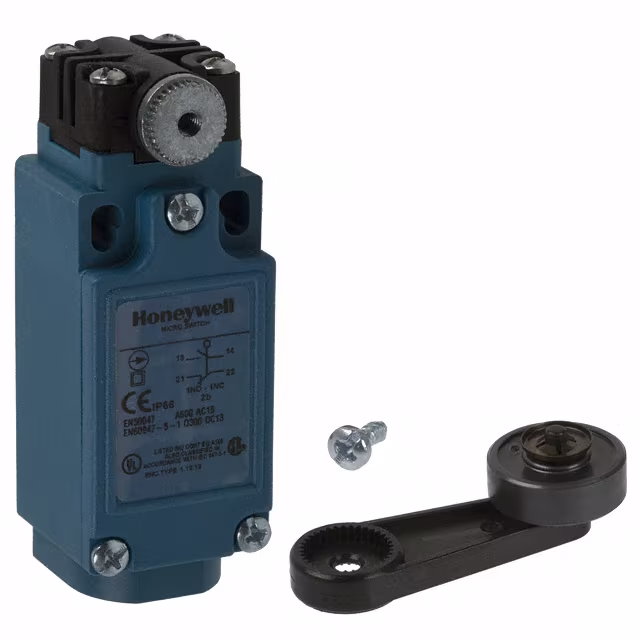

GLDA01A1ASWITCH SNAP ACTION SPDT 6A 120V |
1,342 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|

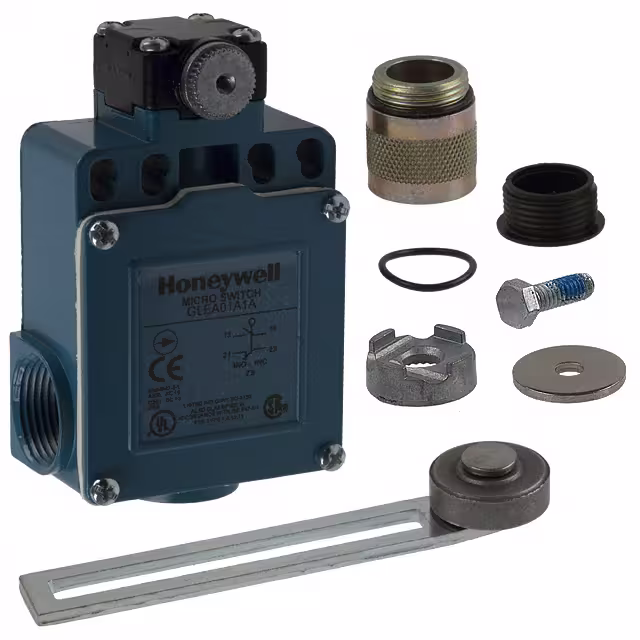

GLEA01A1ASWITCH SNAP ACTION SPDT 6A 120V |
3,427 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
|

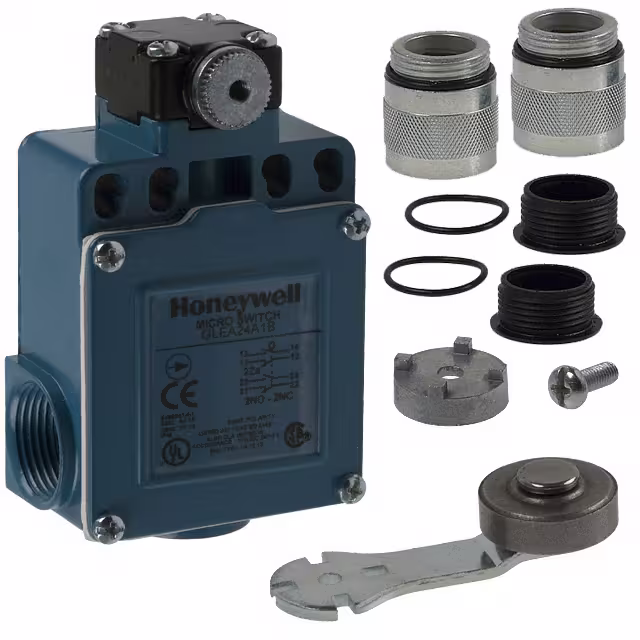

GLEA24A1BSWITCH SNAP ACTION DPDT 6A 120V |
4,110 |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
|
GLLC01CSWITCH SNAP ACTION SPDT 10A 300V |
1,268 |
|
Datasheet | GLL | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 1000gf | 153gf | 1.130" (28.7mm) | 0.110" (2.8mm) | 0.060" (1.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
91MCE1-P1SWITCH SNAP ACTION DPST 6A 120V |
2,650 |
|
Datasheet | 91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
91MCE2-P1SWITCH SNAP ACTION DPST 6A 120V |
1,090 |
|
Datasheet | 91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
91MCE2-S1SWITCH SNAP ACTION DPST 6A 120V |
4,502 |
|
Datasheet | 91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
91MCE3-P1SWITCH SNAP ACTION DPST 6A 120V |
2,239 |
|
Datasheet | 91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
91MCE16-P1SWITCH SNAP ACTION DPST 6A 120V |
4,692 |
|
- |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|
LSXYAB3KSWITCH SNAP ACTION SPDT 10A 120V |
3,742 |
|
Datasheet | LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
