Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12CX2ESWITCH SNAP ACT SPDTX2 20A 120V |
1,032 |
|
Datasheet | CX | Bulk | Obsolete | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 126gfm | 11gfm | - | 15° | 10° | 90° | -25°C ~ 85°C |
|

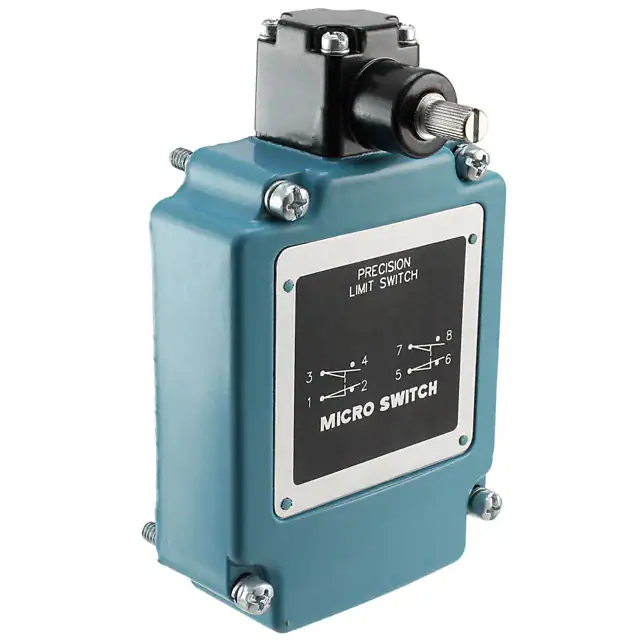

301LS2SWITCH SNAP ACTION SPDT 10A 120V |
4,012 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 15° | 15° | 10° | 30° | -29°C ~ 71°C |
|
|
JS-555SUBMINIATURE BASIC SWITCH |
2,793 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS3A3K-7AASWITCH SNAP ACTION SPDT 10A 120V |
1,069 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
622EN531-1SWITCH AERO SEALED |
3,959 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4HM54SWITCH SNAP ACT SPST-NO 1A 28V |
1,531 |
|
Datasheet | HM | Bulk | Obsolete | SPST-NO | Off-Mom | 1A (DC) | - | 28 V | Lever, Straight | Chassis Mount | Wire Leads | - | Sealed - Hermetically | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -184°C ~ 200°C |
|
|
GKCA14L7SWITCH SAFETY LIMIT HD |
2,779 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSXA3K1SWITCH SNAP ACTION SPDT 10A 120V |
4,520 |
|
Datasheet | LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Clockwise Rotation | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
GLDA35A1B-F055LIMIT SWITCH |
1,912 |
|
- |
GLD | Bulk | Active | DPST-NO (DM) | Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
BAF1-3CN18X1SWITCH SNAP ACTION SPDT 15A 125V |
3,998 |
|
Datasheet | BAF1 | Bulk | Not For New Designs | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | - | - | 15° | 15° | - | - | -32°C ~ 71°C |
