Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1HS41SWITCH SNAP ACTION SPDT 1A 125V |
1,997 |
|
Datasheet | HS | Bulk | Active | SPDT | On-Mom | 1A (AC), 5A (DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 113 ~ 567gf | 57gf | 0.533" (13.54mm) | - | 0.100" (2.54mm) | 0.062" (1.6mm) | -55°C ~ 125°C |
|
|
WGLA1A00AA4JSWITCH SNAP ACTION WIRELESS |
1,213 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

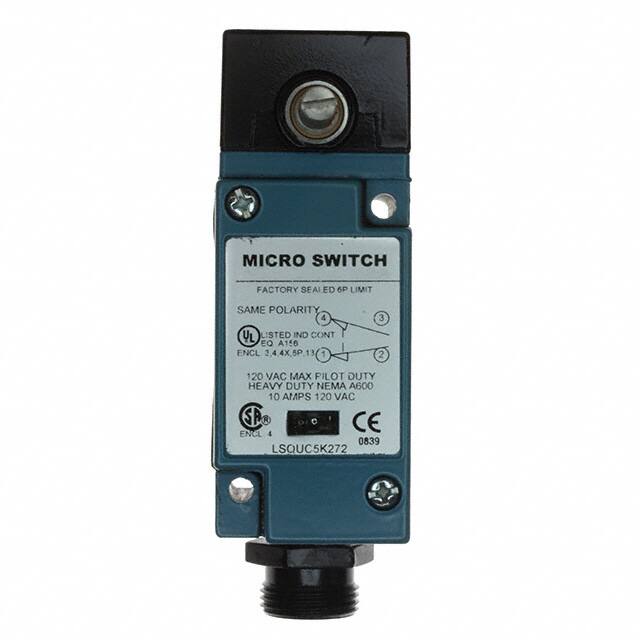

LSQUC5K272SWITCH SNAP ACTION SPDT 10A 120V |
3,505 |
|
Datasheet | LSQ | Bulk | Active | SPDT | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
V3L-1376SWITCH SNAP ACTION SPDT 1A 125V |
1,713 |
|
Datasheet | V3 | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 142gf | - | 0.808" (20.52mm) | 0.120" (3.0mm) | 0.040" (1.02mm) | 0.050" (1.27mm) | - |
|
LSYAC5KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
3,124 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 105°C |
|
3LS1-4CSWITCH SNAP ACTION SPDT 10A 120V |
1,484 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
91SE1-6SEALED SWITCH |
2,792 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3LS1-4PGSWITCH SNAP ACTION SPDT 10A 120V |
3,169 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
LSQ037SWITCH SNAP ACTION SPDT |
4,315 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | - | - | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 9° | 3° | 66° | -12°C ~ 121°C |
|
OP-AR400SWITCH SNAP ACTION SPDT 5A 125V |
1,671 |
|
Datasheet | OP | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | - | - | - | 226 ~ 567gf | - | - | 0.219" (5.6mm) | 0.007" (0.18mm) | 90° | - |
