Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS4YAC2BSWITCH LIMIT |
4,269 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSD2FSWITCH SNAP ACTION DPDT 10A 120V |
4,069 |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
GLCB07E7B-F049LIMIT SWITCH |
2,219 |
|
- |
GLC | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
LSYAC7LR-FPSWITCH SNAP ACTION DPDT 7A 120V |
2,273 |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 7A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
14XE1-12SWITCH SNAP ACTION SPDT 7A 28V |
1,914 |
|
Datasheet | XE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 255gf | 57gf | 0.429" (10.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
|
LZF1SWITCH SNAP ACTION SPDT SEALED |
1,792 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8AS188SEALED SWITCH |
3,753 |
|
Datasheet | - | Bulk | Active | SPST-NO | Off-On | - | - | - | Lever, Roller | Panel Mount | Wire Leads | - | - | 595gf | 57gf | - | - | 0.018" (0.45mm) | 0.008" (0.2mm) | - |
|
|
1PB557SWITCH LIMIT PB PNL MT SPDT 5A |
1,675 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

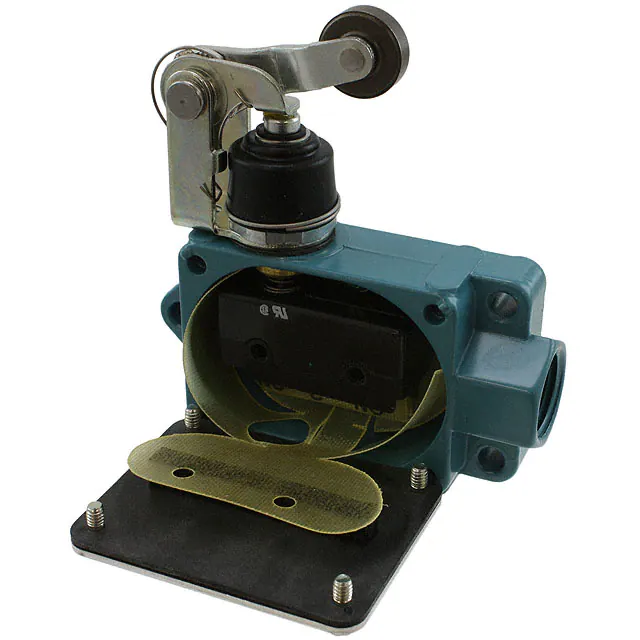

DTF2-2RN2-LHSWITCH SNAP ACTION DPDT 10A 125V |
2,218 |
|
Datasheet | DTF | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 1134gf | 57gf | - | 0.310" (7.9mm) | 0.120" (3.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
LSQ053SWITCH SNAP ACTION SPDT 20A 120V |
4,372 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-On | 20A (AC) | 120 V | - | Side Rotary, Roller | Chassis Mount | Connector | - | - | 46gf | - | - | 17° | 8° | 58° | -12°C ~ 121°C |
