Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1LS195SWITCH LIMIT SPDT 10A 120V |
1,203 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Roller | Chassis Mount | - | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | - |
|
|
201LS51SWITCH SNAP ACTION SPDT 10A 120V |
4,897 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 11gfm | 2.070gf | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
|
12CX1SWITCH SNAP ACTION SPDT 20A 120V |
2,127 |
|
Datasheet | CX | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 126gfm | 11gfm | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
LSB1A-4MSWITCH SNAP ACTION SPDT 10A 120V |
2,853 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Top Rotary, Adjustable Rod | Chassis Mount | Plug In | - | - | 28gfm | - | - | 25° | 10° | 110° | -1°C ~ 121°C |
|
|
BZLN-10-RHSWITCH SNAP ACTION SPDT 10A 125V |
2,714 |
|
Datasheet | LN | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Right Side | 2268gf | 454gf | 1.640" (41.65mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.203" (5.15mm) | -32°C ~ 71°C |
|
|
LSG6BSWITCH SNAP ACTION DPDT 10A 120V |
3,052 |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Plug In | - | - | 4536gf | - | - | 0.170" (4.3mm) | 0.090" (2.3mm) | 0.079" (2.0mm) | -1°C ~ 93°C |
|

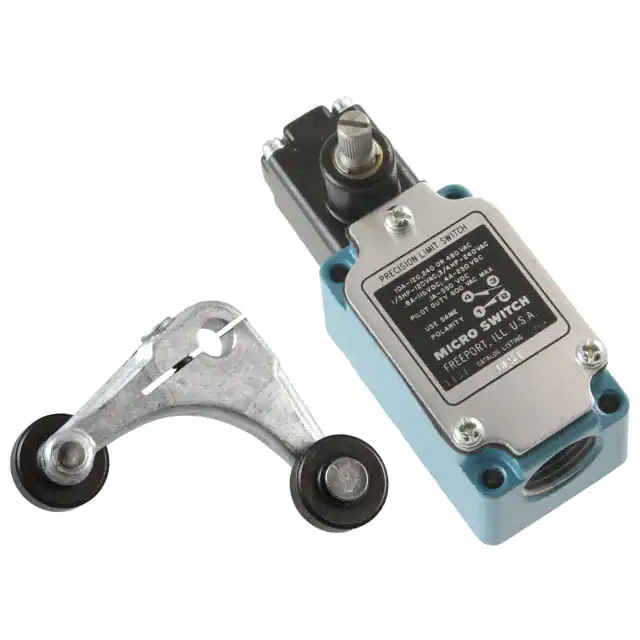

6LS1SWITCH SNAP ACTION SPDT 10A 120V |
1,929 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 34gfm | - | - | 55° | - | - | -29°C ~ 71°C |
|
11LS1SWITCH SNAP ACTION DPDT 10A 125V |
1,668 |
|
Datasheet | LS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC) | 125 V | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 23° | 23° | 16° | 23° | -29°C ~ 71°C |
|

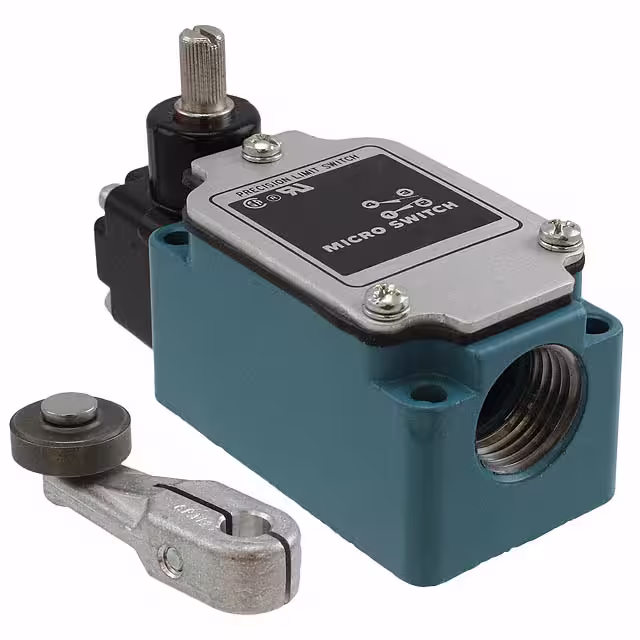

1LS1-L-SIGSWITCH SNAP ACTION SPDT 10A 120V |
1,754 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
5LS7SWITCH SNAP ACTION SPDT 10A 120V |
1,324 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1588gf | 454gf | 1.730" (43.9mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
