Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

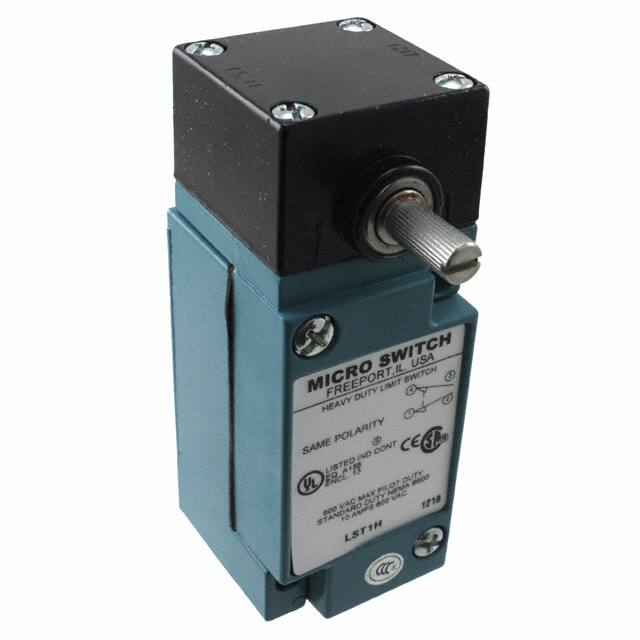

LST1HSWITCH SNAP ACTION SPDT 10A 120V |
2,650 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 8.664gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|

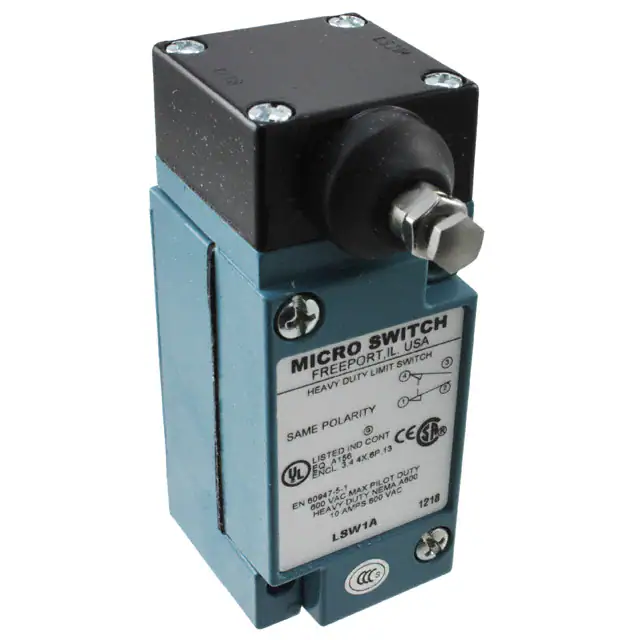

LSW1ASWITCH SNAP ACTION SPDT 10A 120V |
2,587 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
LSB1ASWITCH SNAP ACTION SPDT 10A 120V |
3,171 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Top Rotary - No Lever | Chassis Mount | Plug In | - | - | 28gfm | - | - | 25° | 10° | 110° | -1°C ~ 121°C |
|
LSXYAB4L-1ASWITCH SNAP ACTION DPDT 10A 120V |
3,974 |
|
Datasheet | LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
BZE6-RN18X3SWITCH SNAP ACTION SPDT 15A 125V |
2,310 |
|
Datasheet | E6 | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot, Reset Plunger | 198gf | - | 15° | - | - | - | -32°C ~ 71°C |
|
8LS152SWITCH SNAP ACTION SPDT 10A 120V |
4,893 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|
|
LSR4LSWITCH SNAP ACTION DPDT 10A 120V |
2,790 |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 19gfm | - | - | 15° | 7° | 60° | -1°C ~ 121°C |
|
LSXA4LSWITCH SNAP ACTION DPDT 10A 120V |
2,000 |
|
Datasheet | LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
50075432-00SWITCH SNAP ACTION SHIFTERS |
3,921 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

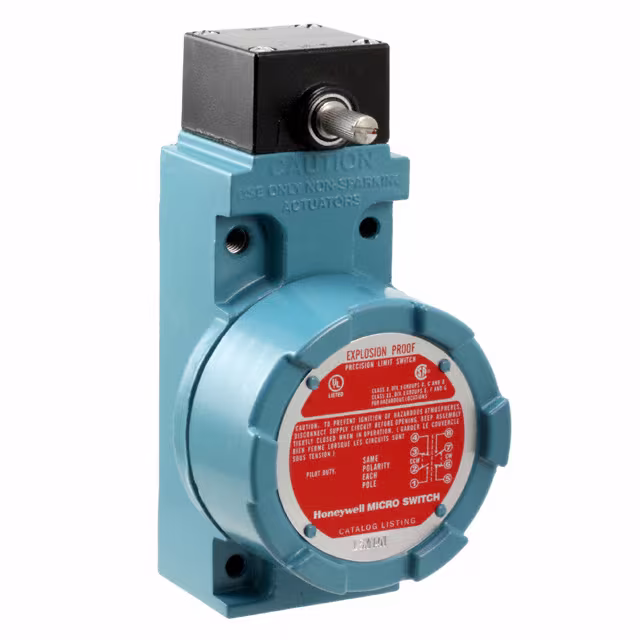

LSXM4NSWITCH SNAP ACTION DPDT 10A 120V |
3,701 |
|
Datasheet | LSX | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
