Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSD1ASWITCH SNAP ACTION SPDT 10A 120V |
1,734 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

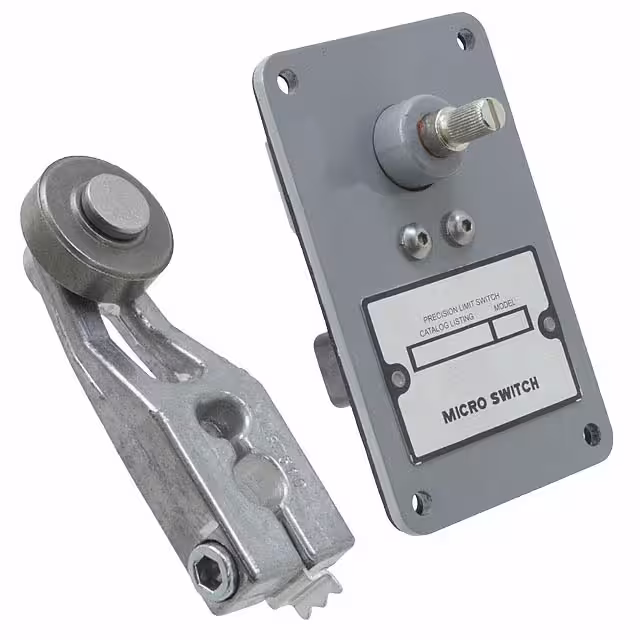

7LS1SWITCH SNAP ACTION SPDT 10A 120V |
2,925 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
LSA3K-1DSWITCH SNAP ACTION SPDT 10A 120V |
4,426 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Steel Roller, Back Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
BAF1-2RN18-LHSWITCH SNAP ACTION SPDT 20A 125V |
4,357 |
|
Datasheet | BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | - | - | 15° | 15° | - | - | -32°C ~ 71°C |
|
1LS312-LSWITCH SNAP ACTION SPDT 10A 125V |
3,504 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
|
424EN31-RB2SWITCH AERO SEALED |
3,451 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1XE99-TSEALED SWITCH |
1,744 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OP-AR20SWITCH SNAP ACTION SPDT 15A 125V |
1,365 |
|
Datasheet | OP | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 8.158 ~ 23gf | - | - | 8° | 0.25° | 90° | - |
|
|
LSM2DMSWITCH SNAP ACTION DPDT 10A 120V |
4,597 |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
LSD3KSWITCH SNAP ACTION SPDT 10A 120V |
1,888 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
