Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXF3K5SWITCH SNAP ACTION SPDT 10A 120V |
1,375 |
|
Datasheet | LSX | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | 1.735" (44.1mm) | 0.100" (2.5mm) | 0.045" (1.1mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

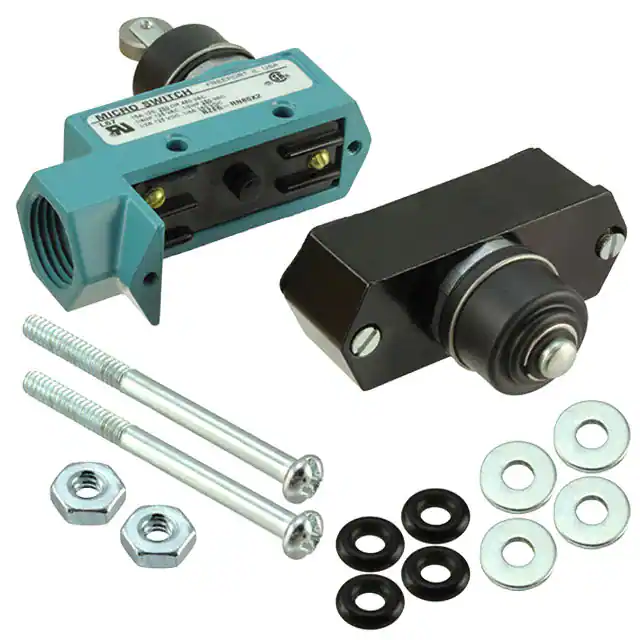

BZE6-RN80X2SWITCH SNAP ACTION SPDT 15A 125V |
3,064 |
|
Datasheet | E6 | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP56 - Dust Protected, Water Resistant | Actuator Seal Boot, Reset Plunger | 595 ~ 1587gf | - | 2.232" (56.7mm) | 0.078" (2.0mm) | - | 0.187" (4.75mm) | -32°C ~ 71°C |
|
|
LSZ7A5ASWITCH LIMIT |
2,195 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5SE218SWITCH SNAP ACTION SPDT 7A 28V |
4,783 |
|
Datasheet | SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
|
|
201LS144SWITCH SNAP ACTION SPDT 10A 120V |
1,540 |
|
Datasheet | LS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
8LS1SWITCH SNAP ACTION SPDT 10A 120V |
2,094 |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Flexible Cable | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|
|
LSYVC7LSWITCH SNAP ACTION DPDT 10A 120V |
1,609 |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
39SE10SEALED SWITCH |
4,762 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VPX1E2ABRG1A2BSWITCH SNAP ACT SPDTX2 15A 150V |
2,219 |
|
Datasheet | VPX | Bulk | Obsolete | SPDT x 2 | On-On | 15A (AC) | 150 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof, Valve Position Indicator | 102gfm | - | - | - | - | - | -40°C ~ 60°C |
|
|
LSYCC6BSWITCH SNAP ACTION DPDT 10A 120V |
2,194 |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
