Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQA6B314SWITCH LEVER FOR ROTARY |
4,240 |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gf | - | - | 15° | 7° | 60° | - |
|
GLAC01A2BSWITCH SNAP ACTION SPDT 6A 120V |
1,410 |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
GLAB20BSWITCH SNAP ACTION DPDT 6A 120V |
3,372 |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.380" (35.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|
|
4XE1-4SWITCH AERO SEALED |
3,041 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8AS244-MTSWITCH SNAP ACTION SPDT 15A 250V |
3,313 |
|
- |
AS | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 250 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | 1.094" (27.8mm) | - | - | - | -55°C ~ 85°C |
|
|
914CE18-12AL1SWITCH LIMIT |
3,292 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

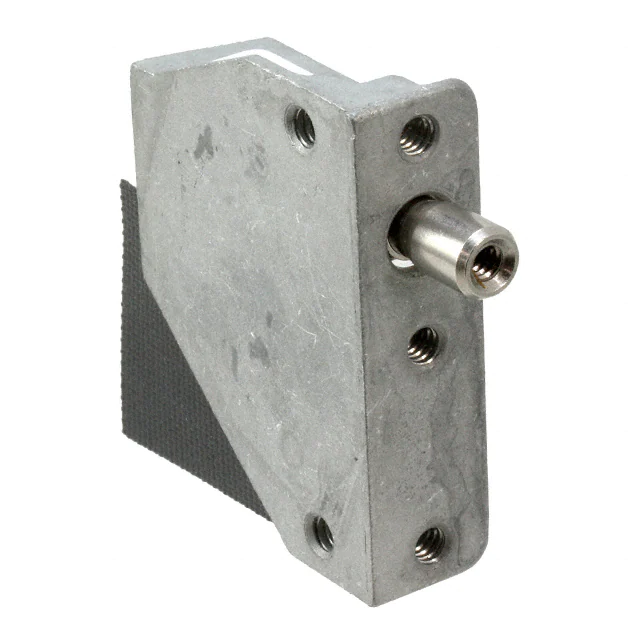

3AC6-D8SWITCH SNAP ACTION SPDT 15A 125V |
3,661 |
|
Datasheet | AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
|
GKMA36SWITCH MIN SAFETY KEY INTERLOCK |
4,230 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SE3SWITCH SNAP ACT SPST-NO 5A 250V |
4,511 |
|
Datasheet | SE | Bulk | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|
|
GLGA12A2BSWITCH SNAP ACT SPDT 0.1A 250V |
4,868 |
|
Datasheet | GLS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 250 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Status Indicator, Steel Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
