Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLHB01CSWITCH SNAP ACTION SPDT 6A 30V |
1,430 |
|
Datasheet | GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1632gf | - | 1.380" (35.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|
|
GLAA29J1BSWITCH SNAP ACTION DPDT 0.1A 50V |
1,575 |
|
Datasheet | GLS | Bulk | Obsolete | DPDT | Mom-Off-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 998gf | - | 16° | 16° | 8° | - | -25°C ~ 85°C |
|
DTE6-2RQSWITCH SNAP ACTION DPDT 10A 125V |
2,584 |
|
Datasheet | E6 | Bulk | Obsolete | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 567 ~ 1134gf | - | 1.885" (47.9mm) | 0.150" (3.8mm) | 0.060" (1.5mm) | 0.087" (2.2mm) | -32°C ~ 71°C |
|
|
LSE6B5SWITCH SNAP ACTION DPDT 10A 120V |
3,368 |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
1SE2SWITCH SNAP ACT SPST-NC 5A 250V |
3,196 |
|
Datasheet | SE | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|

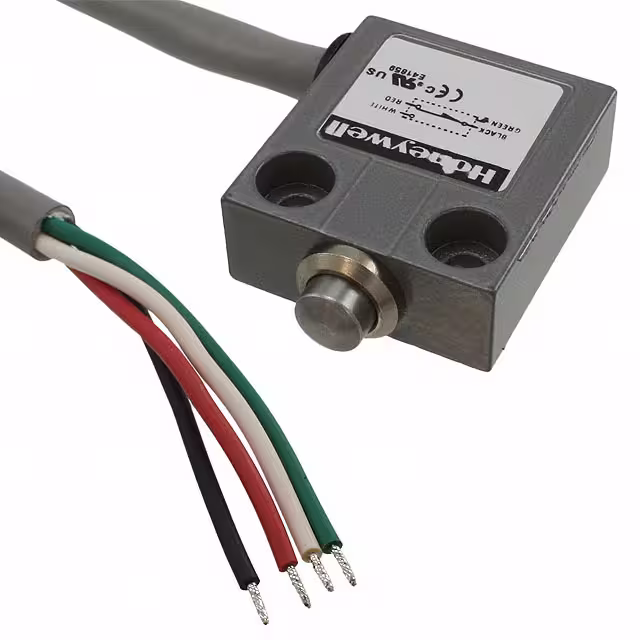

914CE1-9ASWITCH SNAP ACTION SPDT 5A 240V |
3,228 |
|
Datasheet | 914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 9' | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|

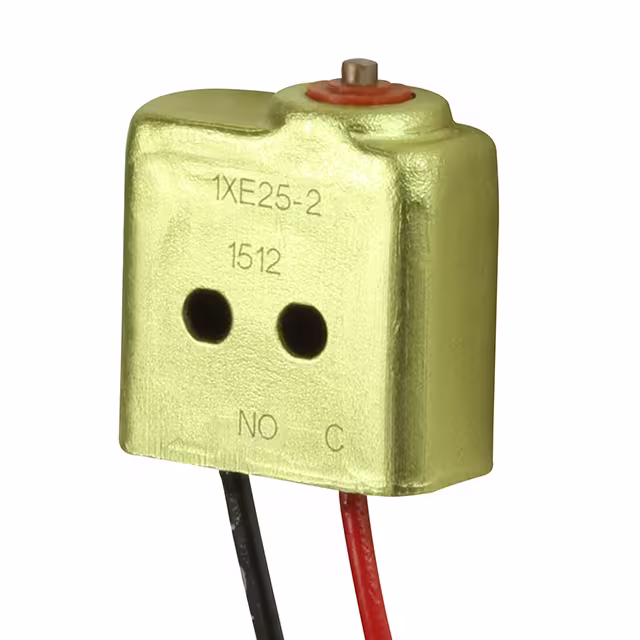

1XE25-2SWITCH SNAP ACT SPST-NO 7A 115V |
4,173 |
|
Datasheet | XE | Bulk | Active | SPST-NO | Off-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -54°C ~ 105°C |
|
BZLN-RH5SWITCH SNAP ACTION SPDT 15A 125V |
4,421 |
|
Datasheet | LN | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Right Side | 2268gf | 454gf | 1.640" (41.65mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.203" (5.15mm) | -32°C ~ 55°C |
|
|
LSW3KSWITCH SNAP ACTION SPDT 10A 120V |
1,176 |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Side Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSA5A-1DSWITCH SNAP ACTION SPDT 10A 120V |
4,580 |
|
Datasheet | HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Status Indicator | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 93°C |
