LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

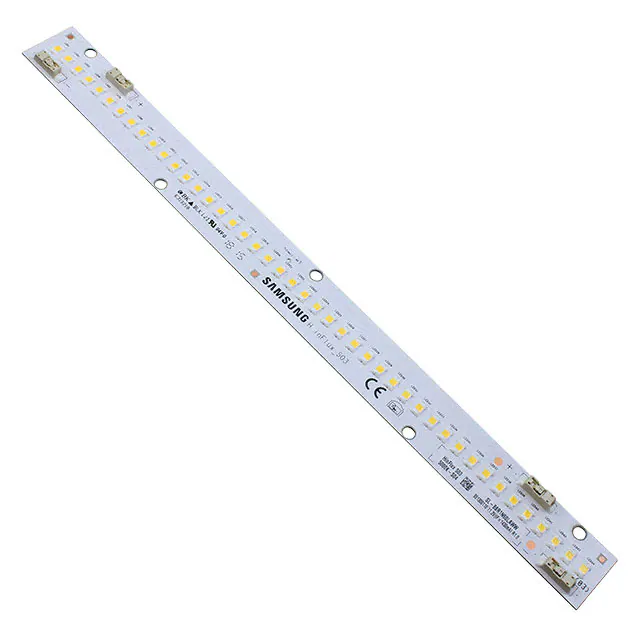

SL-B8T1N60LAWWLED MOD H INFLUX LNR STRP 4000K |
4,379 |
|
Datasheet | H inFlux | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 3060lm (Typ) | 1.43A | 55°C | 11.2V | 191 lm/W | 2.2A | 80 | 118° | - | 280.00mm L x 24.00mm W | 5.20mm | - | Flat |
|
SPHWHAHDNM231ZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
2,959 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 15401lm (Typ) | 1.62A | 85°C | 50.5V | 188 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL231ZV3DCLED COB D GEN3 WM WHT SQ 3000K |
4,854 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9585lm (Typ) | 1.08A | 85°C | 50.6V | 176 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNA25YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
500 |
|
Datasheet | COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 485lm (Typ) | 180mA | 85°C | 34V | 79 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA25YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
500 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 498lm (Typ) | 90mA | 85°C | 33.7V | 164 lm/W | 180mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA25YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
490 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 516lm (Typ) | 90mA | 85°C | 33.7V | 170 lm/W | 180mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA25YZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
475 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 536lm (Typ) | 90mA | 85°C | 33.7V | 177 lm/W | 180mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA27YZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
388 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 459lm (Typ) | 90mA | 85°C | 33.7V | 151 lm/W | 180mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
1,427 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1519lm (Typ) | 270mA | 85°C | 33.7V | 167 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDND27YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
2,896 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1748lm (Typ) | 360mA | 85°C | 33.7V | 145 lm/W | 720mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
