LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8U441560WWLinear IC's |
112 |
|
Datasheet | H inFlux | Bulk | Last Time Buy | LED Module | White, Warm | 3500K | - | Linear Light Strip | 8640lm (Typ) | 1A | 55°C | 44.2V | 195 lm/W | 1.6A | 80 | 118° | - | 561.00mm L x 41.00mm W | 5.50mm | - | Flat |
|
SL-B8R5C9H2AWWLED MOD HORT L2 WH LNR STR 5390K |
787 |
|
Datasheet | Horticulture L2 | Bulk | Obsolete | LED Module | White, Cool | 5390K (4990K ~ 5820K) | - | Linear Light Strip | 8220lm (7100lm ~ 8800lm) | 1.2A | 25°C | 43.1V | 159 lm/W | 1.6A | - | 118° | - | 561.00mm L x 41.00mm W | 5.20mm | - | Flat |
|
|
SI-B8T502560WWLED MOD HORT R/W LNR STRP 3350K |
3,541 |
|
Datasheet | Horticulture L2 Gen2 | Tray | Active | LED Module | Red, White - Warm | 3350K (3070K ~ 3645K) | - | Linear Light Strip | 8960lm (Typ) | 1.2A | 25°C | 42V | 178 lm/W | 1.6A | 80 | 118° | - | 561.00mm L x 41.00mm W | 5.50mm | - | Flat |
|
SI-B8U201B20USLED ENG LT-QB22A LNR STRP 3500K |
4,511 |
|
Datasheet | LT-QB22A | Tray | Active | LED Engine | White, Warm | 3500K | - | Linear Light Strip | 3900lm (Typ) | 450mA | 40°C | 43.8V | 198 lm/W | - | 80 | - | - | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

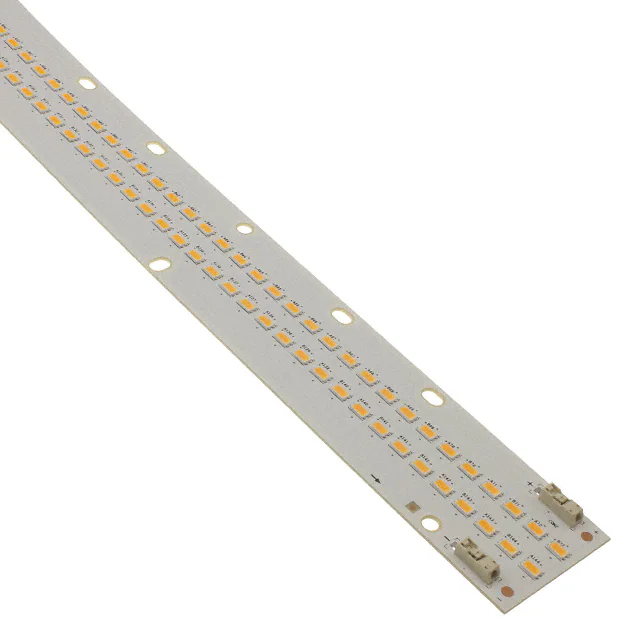

SI-B8VZ91B20WWLED MOD F-SER GEN3 LNR 3000K |
2,283 |
|
Datasheet | F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 17340lm (Typ) | 2.24A | 65°C | 46V | 168 lm/W | - | 80 | - | With Connector | 1120.00mm L x 39.80mm W | 5.20mm | - | Flat |
|
|
SPHWHAHDNA25WJV3DBLED COB D GEN2 WM WHT SQ 3000K |
288 |
|
Datasheet | COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 485lm (Typ) | 180mA | 85°C | 17V | 158 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA27YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
301 |
|
Datasheet | COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 410lm (Typ) | 180mA | 85°C | 34V | 67 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDND27YZV3D4LED COB D GEN4 WM WHT SQ 3000K |
2,217 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1722lm (Typ) | 360mA | 85°C | 33.6V | 142 lm/W | 920mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNF25YZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
4,333 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 3250lm (Typ) | 540mA | 85°C | 33.6V | 179 lm/W | 1.38A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNK27YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
1,601 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5108lm (Typ) | 1.08A | 85°C | 33.7V | 140 lm/W | 2.16A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
