LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8T201560WWLED MOD LT-H562A LNR STRP 4000K |
3,983 |
|
- |
LT-H562A | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2725lm (Typ) | 300mA | 50°C | 68V | 134 lm/W | 360mA | 80 | - | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
|
SI-B8U031070WWLED MOD LT-H072A LNR STRP 3500K |
3,951 |
|
- |
LT-H072A | Box | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 370lm (Typ) | 300mA | 50°C | 9.45V | 131 lm/W | 360mA | 80 | - | With Connector | 70.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
SI-B8U08128001LED MOD LT-H284A LNR STRP 3500K |
2,806 |
|
- |
LT-H284A | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 1220lm (Typ) | 700mA | - | 11.6V | 150 lm/W | 1.2A | 80 | 115° | - | 280.00mm L x 40.00mm W | 5.95mm | - | Flat |
|
|
SI-B8U10128001LED MOD FINGER-RT64B RECT 3500K |
1,178 |
|
- |
Finger-RT64B | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1320lm (Typ) | 700mA | 35°C | 12V | 157 lm/W | 1.6A | 80 | 115° | With Connector | 230.00mm L x 273.00mm W | 6.70mm | - | Flat |
|
SI-B8U16156001LED MOD LT-H564A LNR STRP 3500K |
4,474 |
|
- |
LT-H564A | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2440lm (Typ) | 700mA | 45°C | 23.2V | 150 lm/W | 1.2A | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
|
SI-B8U201560WWLED MOD LT-H562A LNR STRP 3500K |
1,836 |
|
- |
LT-H562A | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2620lm (Typ) | 300mA | 50°C | 68V | 128 lm/W | 360mA | 80 | - | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
|
SI-B8U341550WWLED MOD LT-F552A LNR STRP 3500K |
2,758 |
|
- |
LT-F552A | Tray | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4370lm (Typ) | 1.35A | 60°C | 24.7V | 131 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
|
SI-B8V031070WWLED MOD LT-H072A LNR STRP 3000K |
3,284 |
|
- |
LT-H072A | Box | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 350lm (Typ) | 300mA | 50°C | 9.45V | 123 lm/W | 360mA | 80 | - | With Connector | 70.00mm L x 24.00mm W | 5.80mm | - | Flat |
|

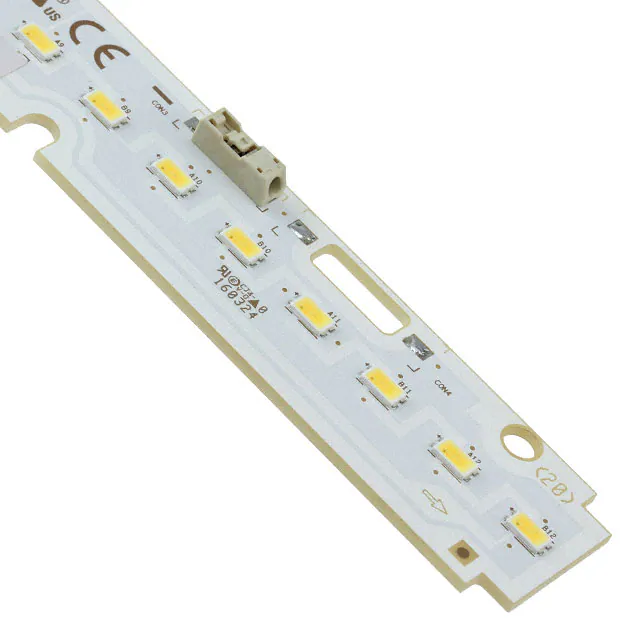

SI-B8V07128SWWLED MOD LT-S282F LNR STRP 3000K |
3,144 |
|
Datasheet | LT-S282F | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1080lm (Typ) | 800mA | 50°C | 8.8V | 153 lm/W | 1.44A | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8V102280WWLED MOD LT-H282A LNR STRP 3000K |
4,868 |
|
- |
LT-H282A | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1290lm (Typ) | 300mA | 50°C | 34.3V | 125 lm/W | 360mA | 80 | - | With Connector | 280.00mm L x 24.00mm W | 5.80mm | - | Flat |
