LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B9R463B20WWLED MOD V GEN3 WH LNR STR 5000K |
2,986 |
|
Datasheet | V Gen3 | Tray | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 7000lm (6460lm ~ 7700lm) | 1.01A | 65°C | 45V | 154 lm/W | 2.02A | 90 | 118° | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
|
SI-B9U463B20WWLED MOD V GEN3 WH LNR STR 3500K |
4,685 |
|
Datasheet | V Gen3 | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 6690lm (6140lm ~ 7350lm) | 1.01A | 65°C | 45V | 147 lm/W | 2.02A | 90 | 118° | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
|
SI-B9T463B20WWLED MOD V GEN3 WH LNR STR 4000K |
1,468 |
|
Datasheet | V Gen3 | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 7000lm (6350lm ~ 7700lm) | 1.01A | 65°C | 45V | 154 lm/W | 2.02A | 90 | 118° | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
|
SI-B9V463B20WWLED MOD V GEN3 WH LNR STR 3000K |
4,284 |
|
Datasheet | V Gen3 | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 6470lm (5930lm ~ 7110lm) | 1.01A | 65°C | 45V | 142 lm/W | 2.02A | 90 | 118° | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|

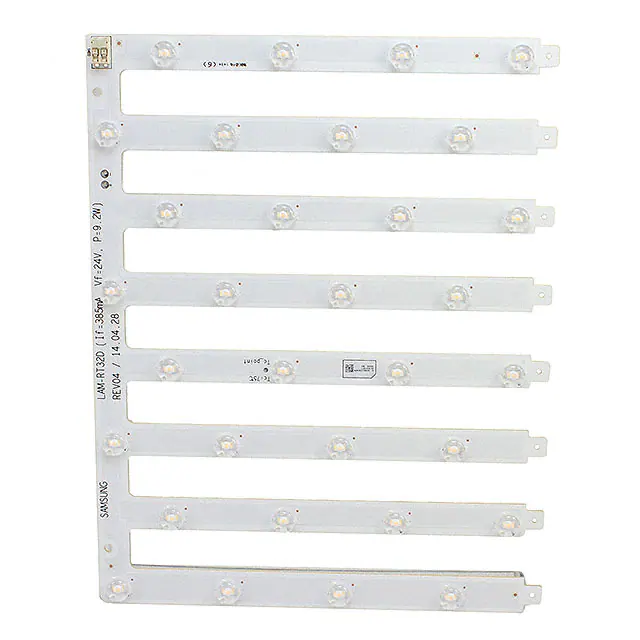

SI-B8V095280WWLED MOD LAM-RT32B WM RECT 3000K |
1,754 |
|
Datasheet | LAM-RT32B | Box | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 1130lm (1010lm ~ 1260lm) | 385mA | 35°C | 24V | 123 lm/W | - | 80 | 145° | With Connector | 273.00mm L x 216.00mm W | 5.60mm | - | Domed |
|
|
SPHWHAHDNM251ZP2D2Linear IC's |
2,082 |
|
Datasheet | COB D Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 6500K 2-Step MacAdam Ellipse | - | Square | 13121lm (Typ) | 1.62A | 85°C | 52V | 156 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM231ZR2D2Linear IC's |
1,050 |
|
Datasheet | COB D Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 14112lm (Typ) | 1.62A | 85°C | 52V | 168 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM231ZV2D2Linear IC's |
2,005 |
|
Datasheet | COB D Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 13465lm (Typ) | 1.62A | 85°C | 52V | 160 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM231ZT2D2Linear IC's |
1,876 |
|
Datasheet | COB D Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 13896lm (Typ) | 1.62A | 85°C | 52V | 165 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZR2D2Linear IC's |
2,367 |
|
Datasheet | COB D Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 13196lm (Typ) | 1.62A | 85°C | 52V | 157 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
